SHROUD LOWER PANEL REMOVAL [PANEL REPLACEMENT]
Symbol Marks
Removal Procedure

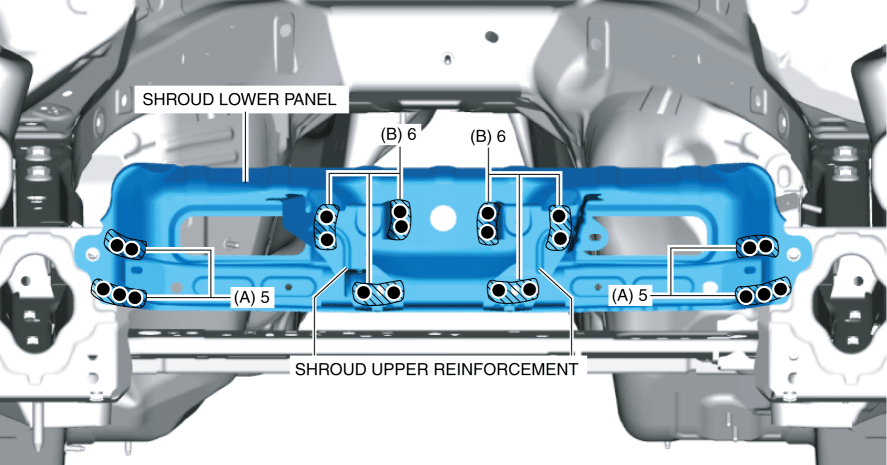

1. Drill the 10 locations indicated by (A) shown in the figure.NOTE:
When removing the shroud upper reinforcement separately, drill the 12 locations indicated by (B).
2. Remove the shroud lower panel.< Previous Next >
