CROSSMEMBER No.1 REMOVAL [PANEL REPLACEMENT]
Symbol Marks
Removal Procedure

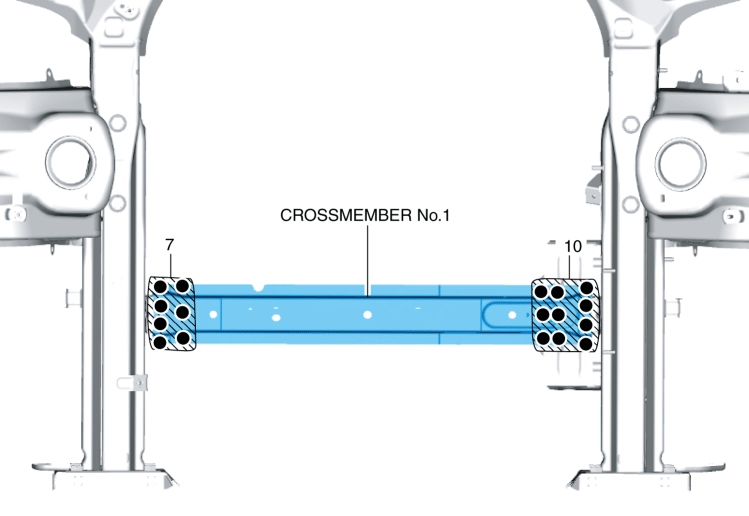

1. Drill the 17 locations indicated shown in the figure.
2. Remove the crossmember No.1.

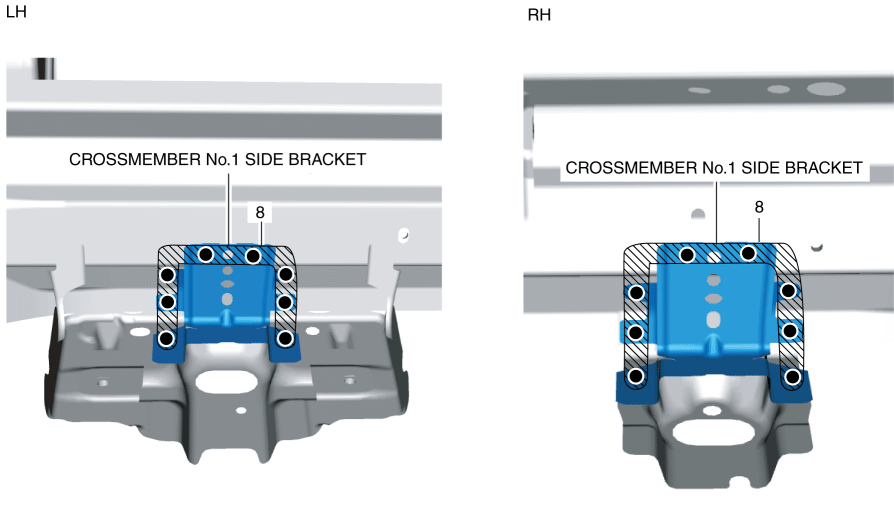

3. Drill the 8 locations indicated shown in the figure, then remove the crossmember No.1 side bracket.

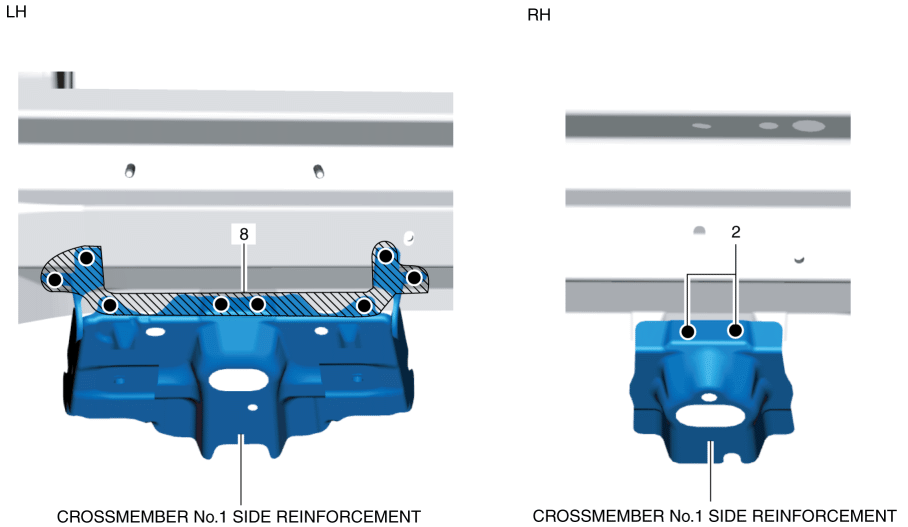

4. Drill the 8 locations (LH), 2 locations (RH) indicated shown in the figure, then remove the crossmember No.1 side reinforcement.< Previous Next >
