FRONT SIDE FRAME REAR REINFORCEMENT REMOVAL [PANEL REPLACEMENT]
Symbol Marks
Removal Procedure

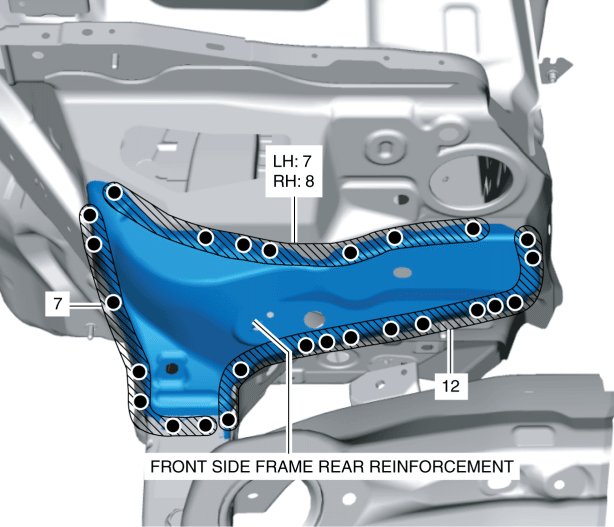

1. Drill the 26 locations (LH), 27 locations (RH) indicated shown in the figure.
2. Remove the front side frame rear reinforcement.< Previous Next >
