FRONT PILLAR (OUTER) REMOVAL [PANEL REPLACEMENT]
Symbol Marks
Removal Procedure
CAUTION:
Avoid cutting with a blowtorch or similar tools as the insulator is flammable shown in the figure.

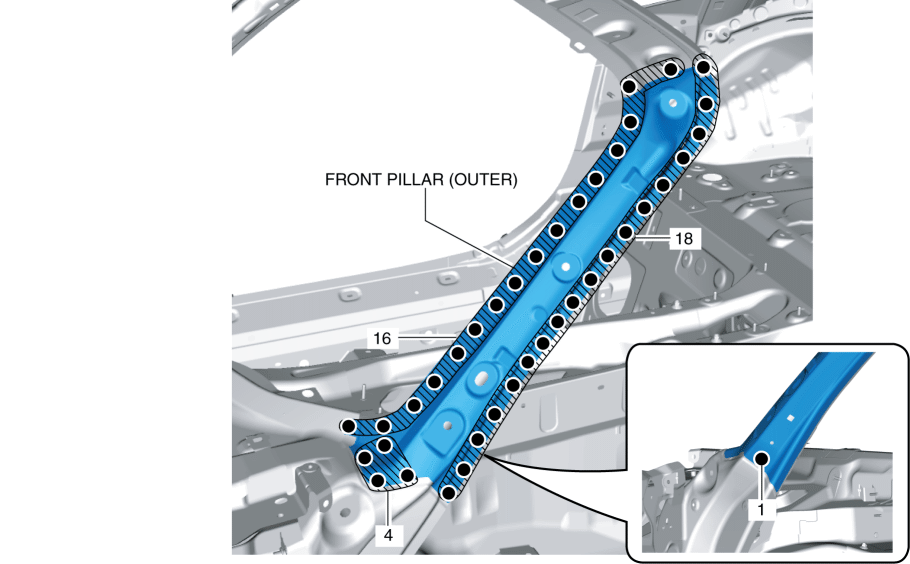

1. Drill the 39 locations indicated shown in the figure.
2. Remove the front pillar (outer).< Previous Next >
