SHROUD UPPER PANEL REMOVAL [PANEL REPLACEMENT]
Symbol Marks
Removal Procedure

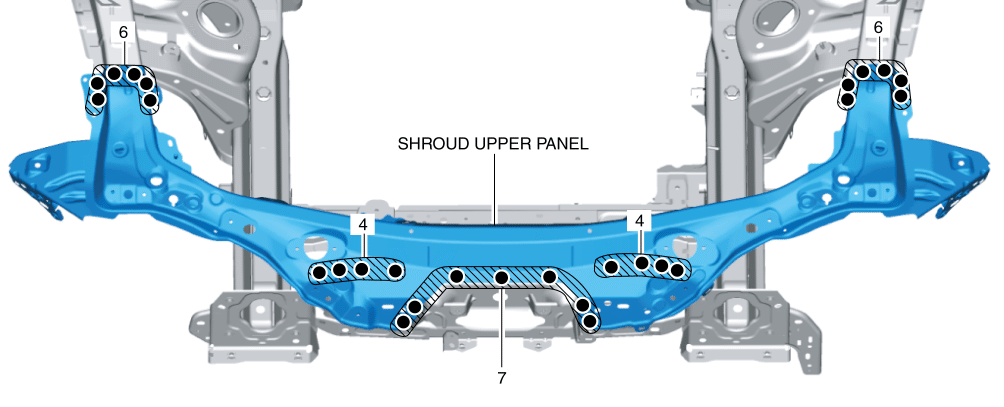

1. Drill the 27 locations indicated shown in the figure.
2. Remove the shroud upper panel.< Previous Next >
