TRUNK FLOOR PANEL REMOVAL [PANEL REPLACEMENT]
Symbol Marks
Removal Procedure

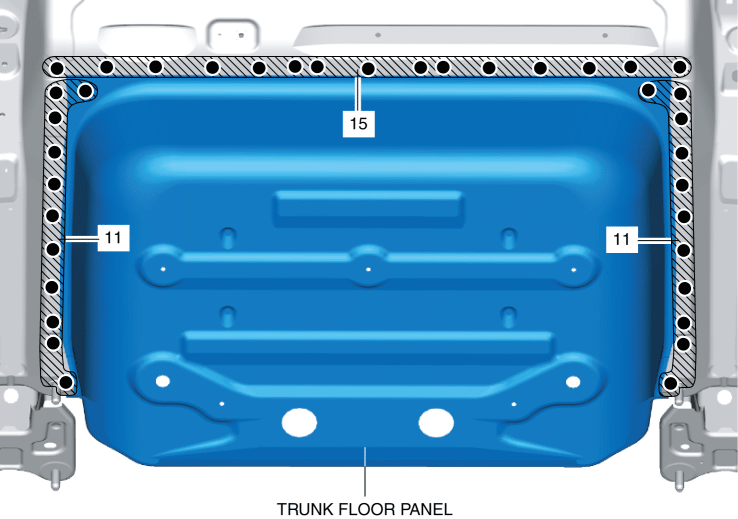

1. Drill the 37 locations indicated shown in the figure.NOTE:
When drilling the 37 locations indicated shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.
2. Remove the trunk floor panel.< Previous Next >
