FRONT FENDER BRACKET REMOVAL [PANEL REPLACEMENT]
Symbol Marks
Removal Procedure

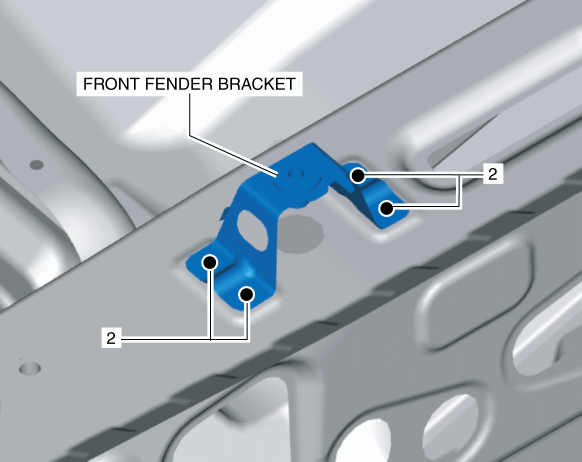

1. Drill the 4 locations indicated shown in the figure.NOTE:
When drilling the 4 locations indicated shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.
2. Remove the front fender bracket.< Previous Next >
