UNDERBODY DIMENSIONS [DIMENSIONS]

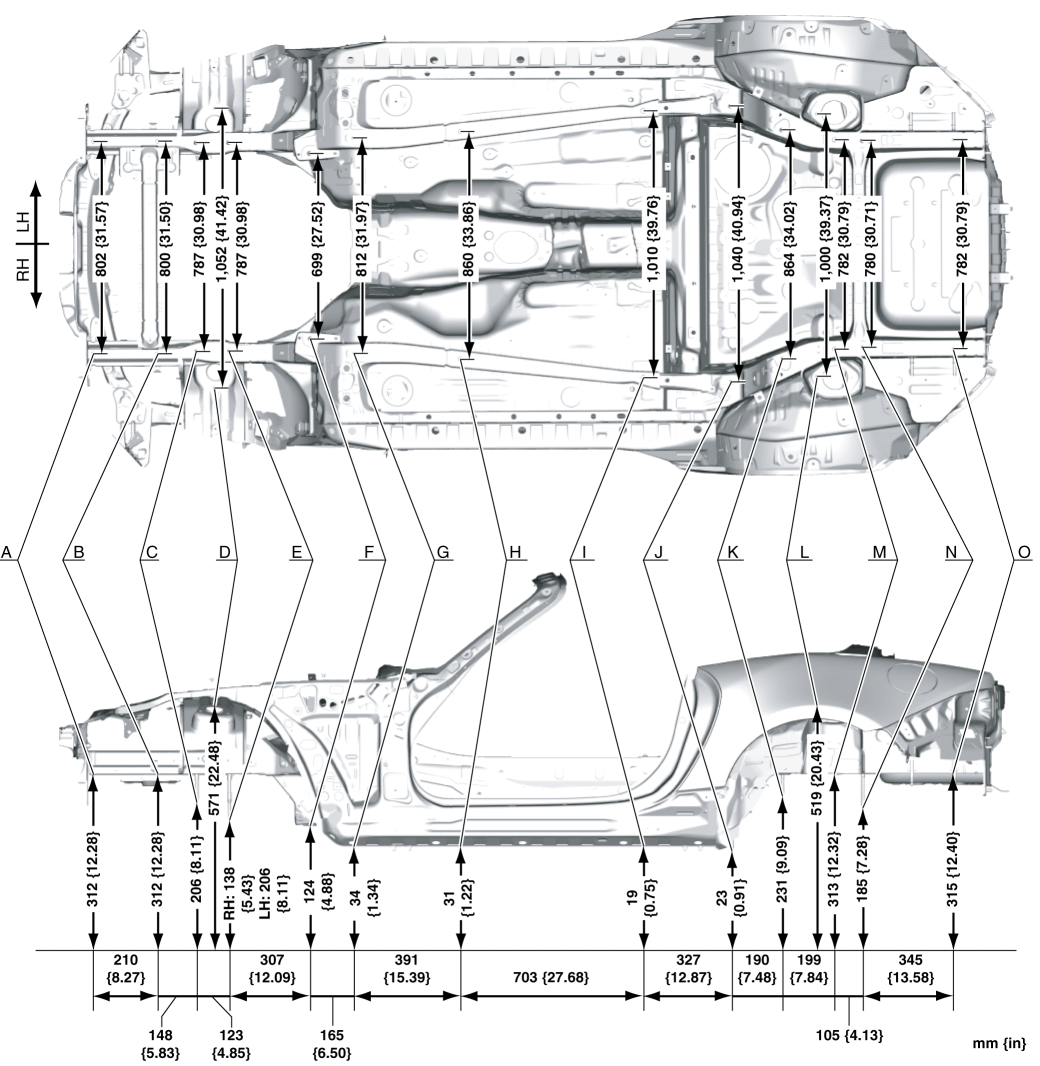

  • The following figures are bottom and side views.

Straight-line dimensions

Flat-plane dimensions

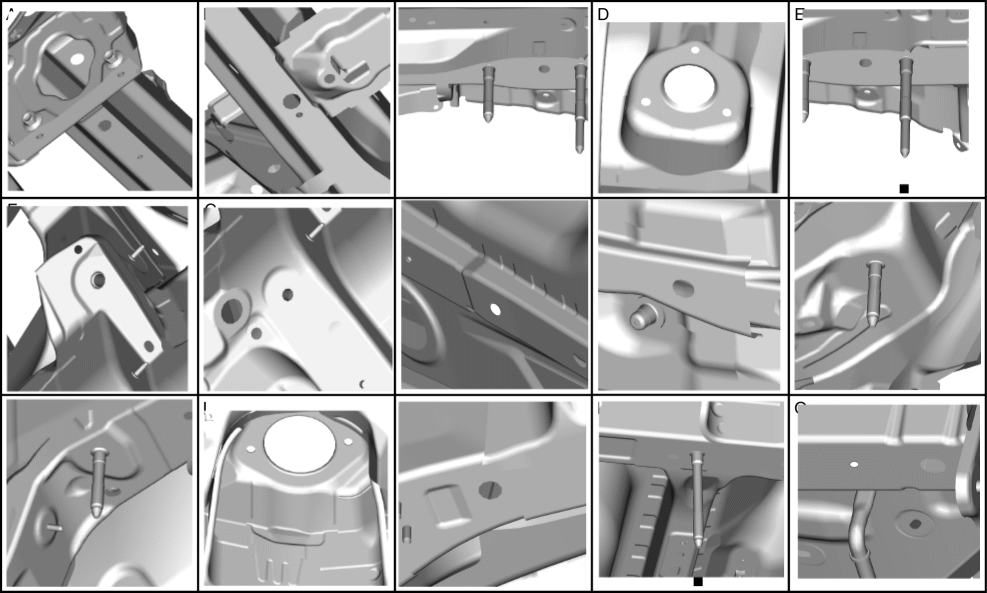

Point symbol

Designation

Hole diameter or bolt or nut size (mm )

A

Front frame (outer) datum hole

φ16 {0.63}

B

Front frame (outer) datum hole

φ16 {0.63}

C

Engine mount installation bolt

M14

D

Front suspension mount installation hole

φ11 {0.43}

E

Engine mount installation bolt

M14

F

Front suspension mount installation nut

M14

G

Front frame (rear) datum hole

φ12 {0.47}

H

Front B frame datum hole

φ16 {0.63}

I

Front B frame datum hole

16 × 20 {0.63 × 0.79}

J

Rear crossmember installation bolt

M12

K

Rear crossmember installation bolt

M12

L

Rear suspension mount installation hole

φ12 {0.47}

M

Rear side frame (rear) datum hole

φ16 {0.63}

N

Rear crossmember installation bolt

M12

O

Rear bumper stay installation nut

M6
