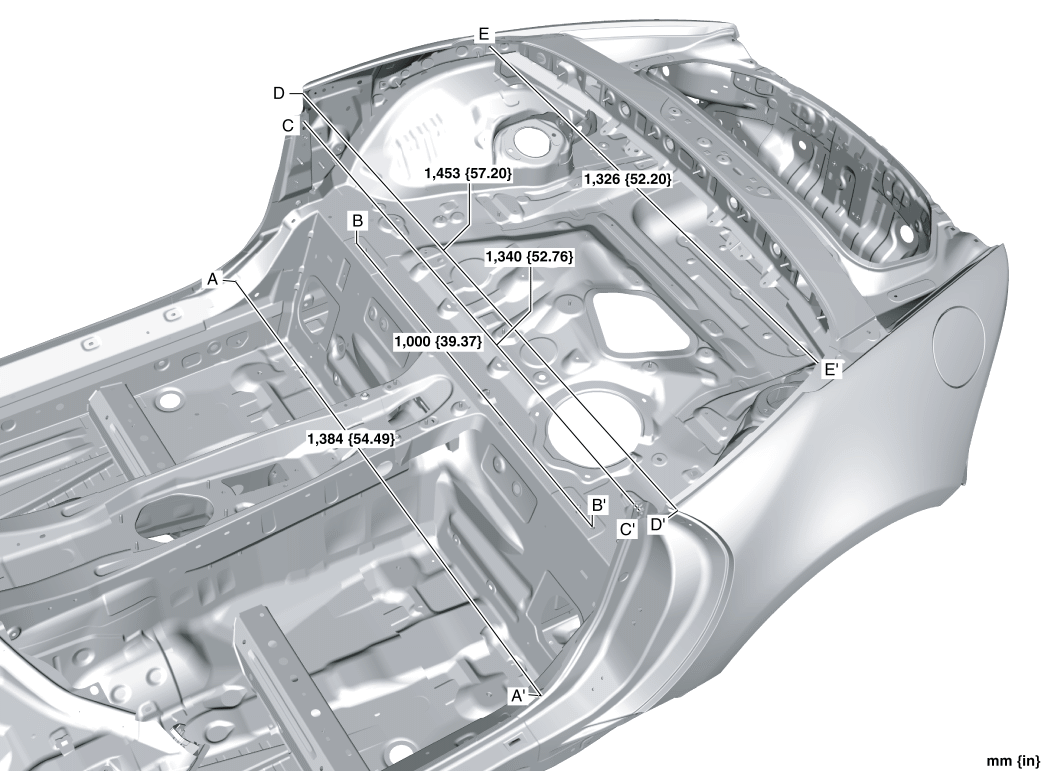

ROOM DIMENSIONS (3) [DIMENSIONS]

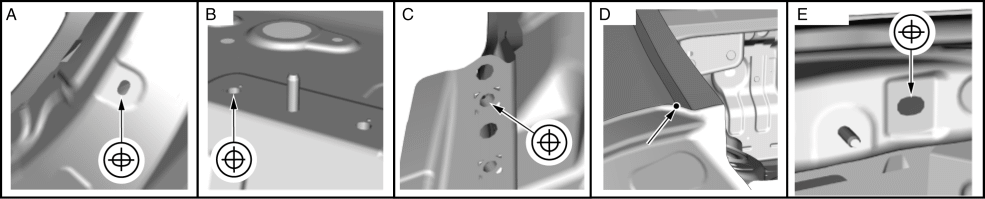

| Point symbol |
Designation |
Hole diameter or bolt or nut size (mm ) |
| A |
Side sill (inner, rear) datum hole |
7 × 12 {0.3 × 0.47} |
| B |
Seat back crossmember assembly installation nut |
M10 |
| C |
Corner junction component nut |
M8 |
| D |
Rear fender panel projection location |
— |
| E |
Side brace datum hole |
10 × 14 {0.39 × 0.55} |
