CONSTRUCTION STANDARD VALUES [CONSTRUCTION STANDARD VALUES]

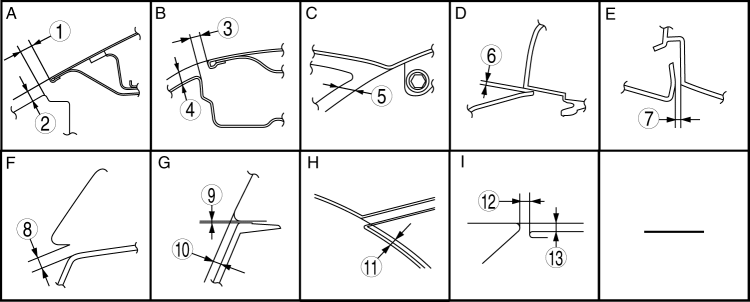

Front View

No.

Measurement part

Standard values (mm )

Maximum values (mm )

Minimum values (mm )

Parallelism (mm )

A

1

3.5 {0.14}

5.3 {0.21}

1.7 {0.067}

2.0 {0.079}

2

0

2.0 {0.079}

–2.0 {–0.079}

-

B

3

3.8 {0.15}

4.8 {0.19}

2.8 {0.11}

1.0 {0.039}

4

–0.1 {–0.004}

0.9 {0.04}

–1.1 {–0.043}

-

C

5

0.3 {0.01}

1.8 {0.071}

–1.2 {–0.047}

-

D

6

1.8 {0.071}

3.3 {0.13}

0.3 {0.01}

1.5 {0.059}

E

7

1.8 {0.071}

3.3 {0.13}

0.3 {0.01}

-

F

8

3.8 {0.15}

3.8 {0.15}

0.5 {0.02}

-

G

9

0.5 {0.02}

1.3 {0.051}

0.5 {0.02}

-

10

0.5 {0.02}

1.2 {0.047}

–0.2 {–0.008}

-

H

11

0.1 {0.004}

1.6 {0.063}

–1.4 {–0.055}

-

I

12

3.8 {0.15}

4.8 {0.19}

3.0 {0.12}

1.0 {0.039}

13

–0.7 {–0.03}

0.3 {0.01}

–1.7 {–0.067}

-

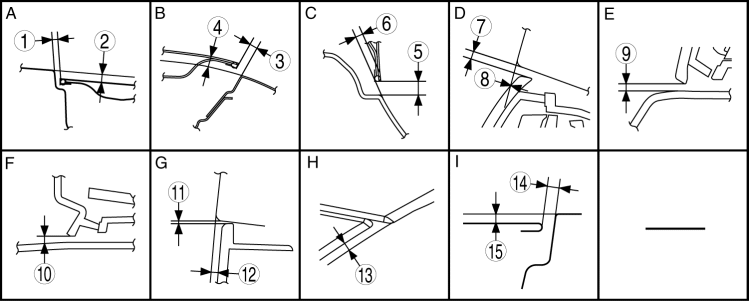

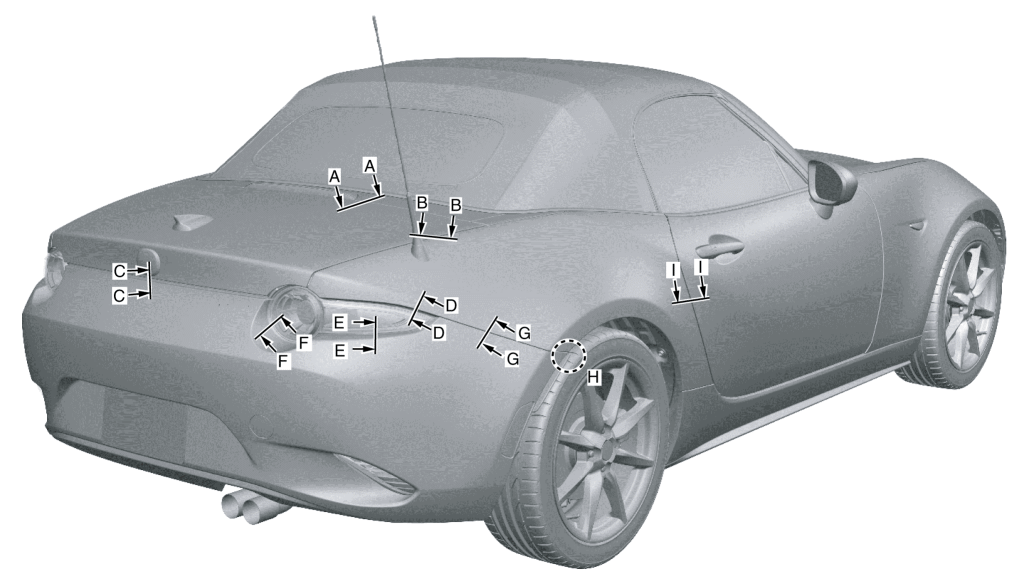

Rear View

No.

Measurement part

Standard values (mm )

Maximum values (mm )

Minimum values (mm )

Parallelism (mm )

A

1

3.4 {0.13}

4.4 {0.17}

2.4 {0.094}

1.5 {0.059}

2

0

1.0 {0.039}

–1.0 {–0.039}

-

B

3

3.3 {0.13}

4.3 {0.17}

2.3 {0.091}

1.0 {0.039}

4

0

1.0 {0.039}

–1.0 {–0.039}

-

C

5

8.0 {0.31}

9.5 {0.37}

6.5 {0.26}

-

6

3.7 {0.15}

5.7 {0.22}

1.7 {0.067}

-

D

7

1.8 {0.071}

3.0 {0.12}

0.6 {0.02}

1.2 {0.047}

8

0.3 {0.01}

1.6 {0.063}

–1.0 {–0.039}

-

E

9

1.8 {0.071}

3.3 {0.13}

0.3 {0.01}

1.5 {0.059}

F

10

1.8 {0.071}

3.3 {0.13}

0.3 {0.01}

-

G

11

0.5 {0.02}

1.3 {0.051}

0.5 {0.02}

-

12

0.5 {0.02}

1.2 {0.047}

–0.2 {–0.008}

-

H

13

0

1.5 {0.059}

–1.5 {–0.059}

-

I

14

3.8 {0.15}

4.8 {0.19}

2.8 {0.11}

1.0 {0.039}

15

0

1.0 {0.039}

–1.0 {–0.039}

-
