INAPPROPRIATE OPERATION AND CONTROL RECORD [PCM (SKYACTIV-G 2.0)]

Purpose

  • For the purpose of protecting passengers and the vehicle, the PCM performs protection control according to the vehicle driving conditions/environment surrounding the vehicle.

    The inappropriate operation and control record of the protection control executed by the PCM can be displayed using the Mazda Modular Diagnostic System (M-MDS) and it can be used during malfunction diagnosis.

Function/display

  • The PCM records the following information as an inappropriate operation and control record.

    • Inappropriate operation and control code

    • Inappropriate operation and control type

    • Odometer value

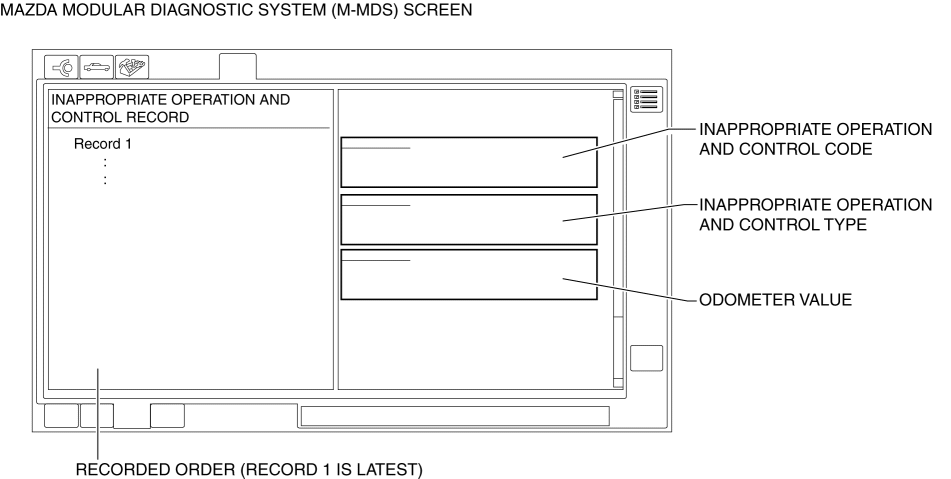

  • The Mazda Modular Diagnostic System (M-MDS) reads out the inappropriate operation and control record and indicates it as shown in the figure below.

Inappropriate operation and control code table

Inappropriate operation and control code

Inappropriate operation and control type

0x30

Temperature restriction control
