CYLINDER BLOCK [SKYACTIV-G 2.0]

Purpose, Function

  • The cylinder block forms the cylinder and crankcase.

Construction

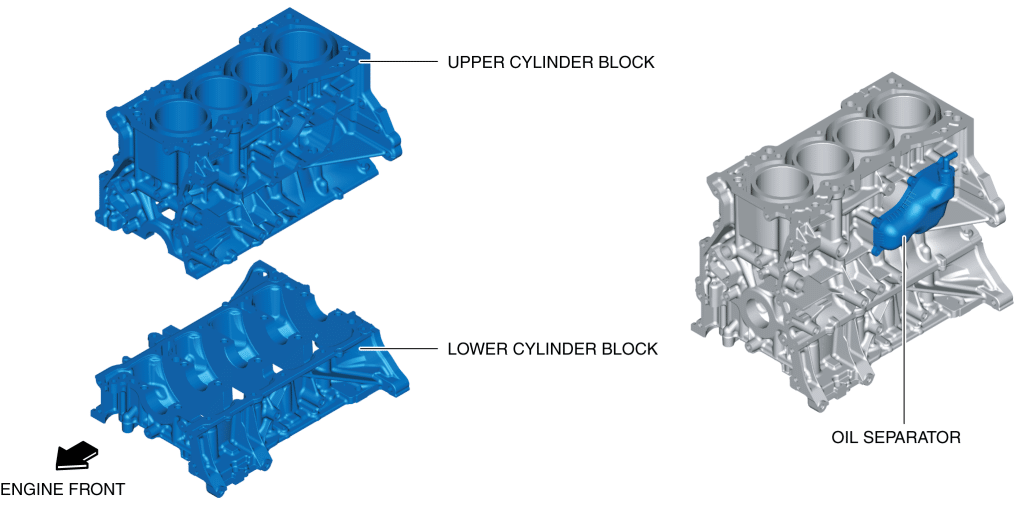

  • The cylinder block consists of the upper cylinder block and lower cylinder block.

  • The lightweight cylinder block is made of aluminum alloy with excellent heat dispersion.

  • The lower cylinder block functions as the main bearing cap. The coupling rigidity of the transmission and support rigidity of the crankshaft have been improved, reducing engine vibration.

  • The engine oil is separated from the blow-by gas by installing an oil separator to the upper cylinder block.
