ENGINE FRONT COVER [SKYACTIV-G 2.0]

Purpose, Function

  • The engine front cover covers the front of the engine to prevent engine oil spillage, noise leakage, and foreign material penetration.

Construction

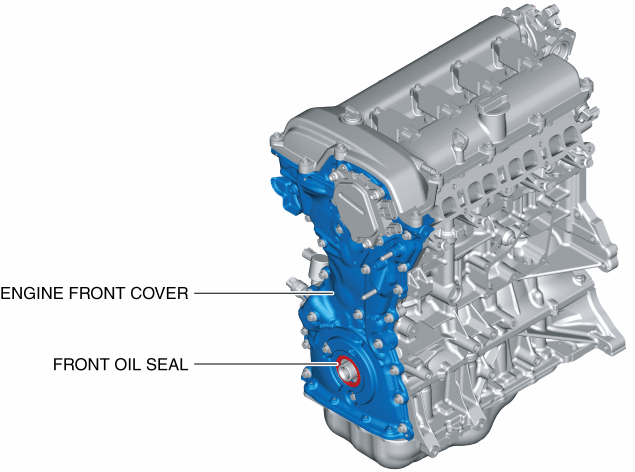

  • The engine front cover is located in front of the engine.

  • The lightweight engine front cover is made of aluminum alloy with excellent noise absorption.

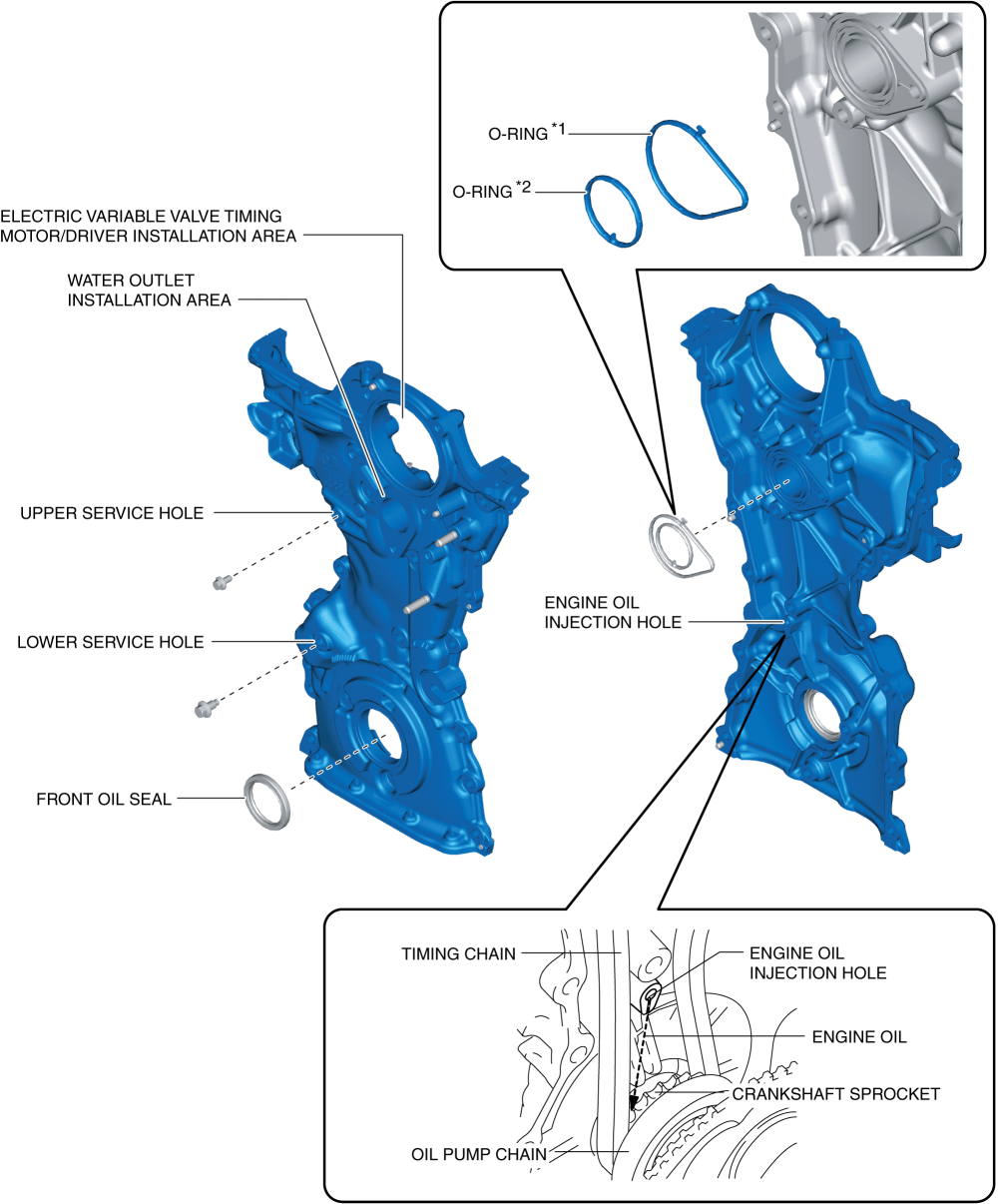

  • The engine front cover has the following parts shown in the figure.

*1
O-ring for engine oil
*2
O-ring for engine coolant
