TIMING CHAIN, CHAIN TENSIONER [SKYACTIV-G 2.0]

Purpose, Function

Timing chain

• The timing chain transmits the rotation force of the crankshaft to the camshaft to perform the rotation timing of the crankshaft and camshaft.

Chain tensioner

• The chain tensioner stabilizes the movement of the timing chain by constantly holding the tension of the timing chain to stabilize the valve open/close timing.

Construction

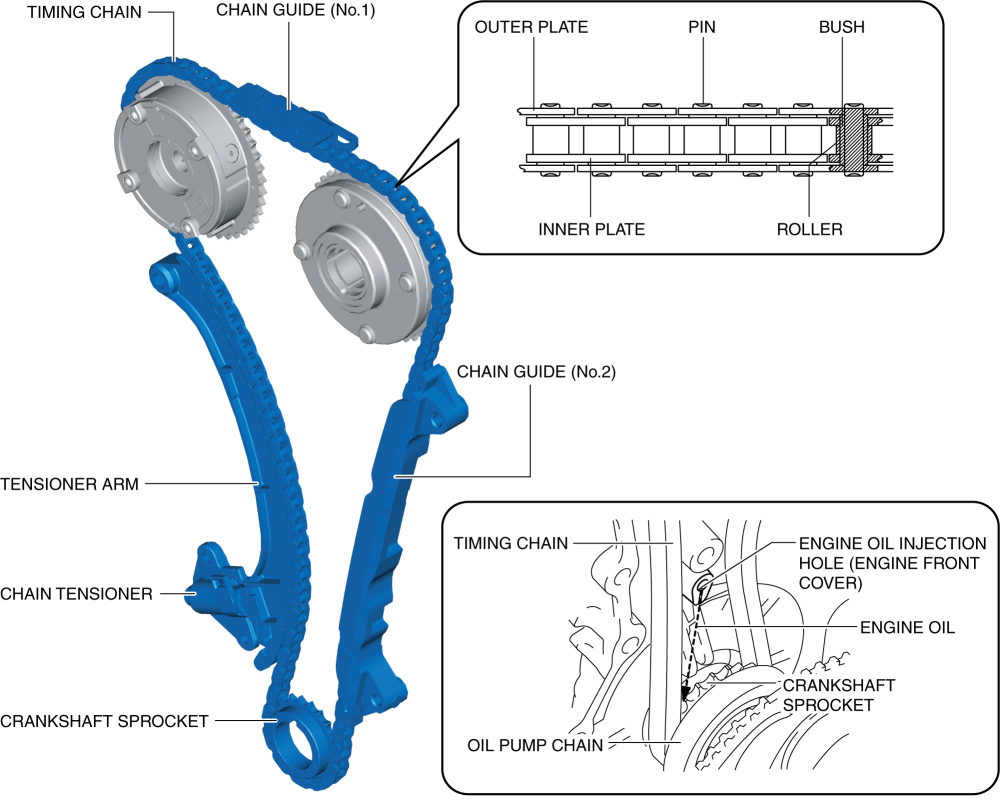

Timing chain

• The timing chain is located between the camshaft sprocket and crankshaft sprocket.



• Lubrication of the timing chain and each sprocket is performed using the engine oil from the engine front cover.

• The sliding resistance has been reduced and the timing chain behavior has been stabilized by changing to a straight-shaped chain guide (No.2) and setting the chain tensioner load to the required minimum.

• Improvement of the rigidity of the chain guide and tensioner arm and the stability of the timing chain operation have reduced the sliding resistance.

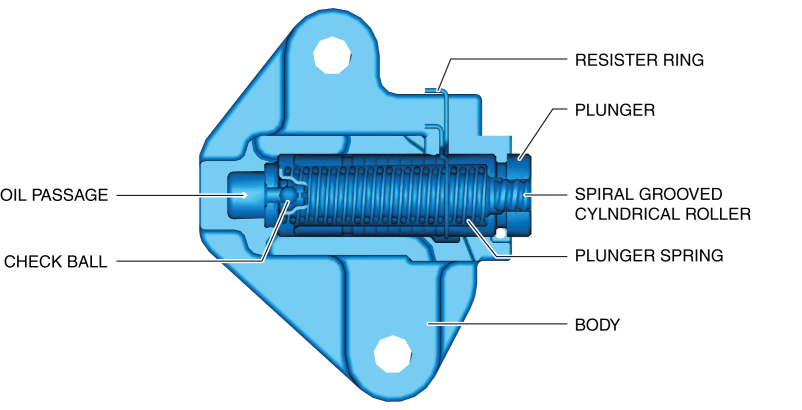

Chain tensioner

• The chain tensioner is located on the cylinder block (engine front part).

• An oil pressure type chain tensioner has been adopted for the chain tensioner.

OPERATION

Chain tensioner

• Tension fluctuation on the timing chain is suppressed due to hydraulic pressure and spring force, and the timing chain tensioner maintains tension on the timing chain.
