OIL FILTER [SKYACTIV-G 2.0]

Purpose, Function

  • Engine oil is filtered by passing engine oil through the oil filter element.

Construction

  • The oil filter is located on the right side surface of the cylinder block.

  • A spin-on type (full-flow type) oil filter has been adopted.

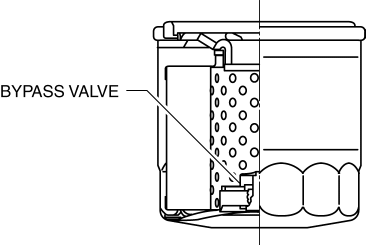

  • The bypass valve is equipped as a detour if the oil filter element becomes clogged.
