STARTER INTERLOCK SWITCH [SKYACTIV-G 2.0]

Purpose, Function

  • The starter interlock prevents a false start of the vehicle at engine start and assures safety. If the clutch pedal is not depressed, engine starting is inhibited.

Construction

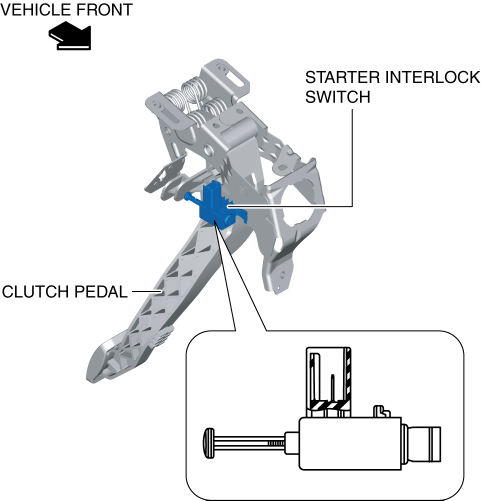

  • The starter interlock switch is located on the clutch pedal.

Operation

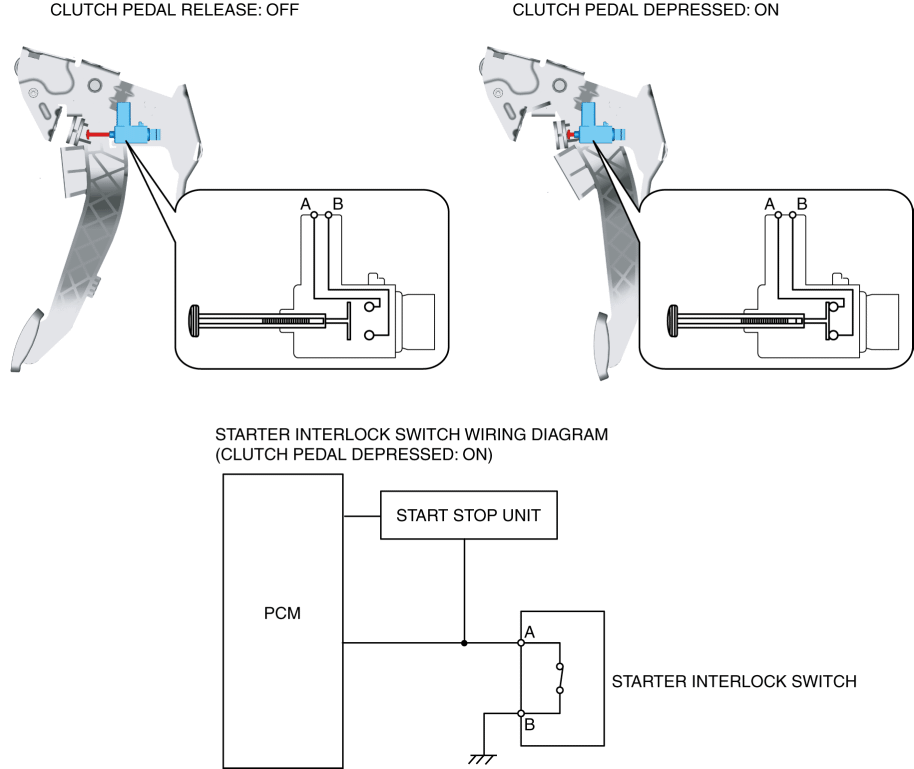

  • The starter interlock switch rod is pressed by the depression of the clutch pedal. At this time, the starter interlock switch is turned on, and by establishing a circuit, engine starting (starter starting) permission is transmitted to the PCM and start stop unit.

Clutch pedal

Starter interlock switch rod condition

Starter interlock switch

Engine start

Release

Release

OFF

Disabled

Depressed

Pressed condition

ON

Enabled

Fail-safe

  • Not applicable
