ENGINE COOLANT TEMPERATURE (ECT) SENSOR [SKYACTIV-G 2.0]

Outline

• Two ECT sensors have been adopted for the engine control and PCM on-board diagnostic.

  Two ECT sensors have been adopted for the system diagnosis of the engine cooling system by the engine control and PCM.

Purpose

• Detects the engine coolant temperature as basic information for mainly determining the fuel injection amount.

Function

• The detection accuracy of the following is improved by comparing each input signal from the ECT sensors positioned in the water outlet case and the lower radiator hose.

• ECT sensor malfunction

• Thermostat malfunction

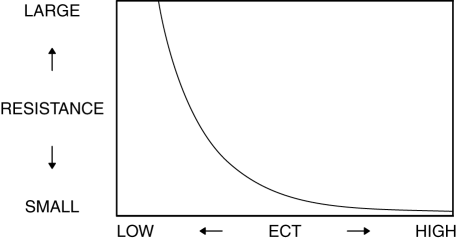

ECT sensor characteristic

Construction

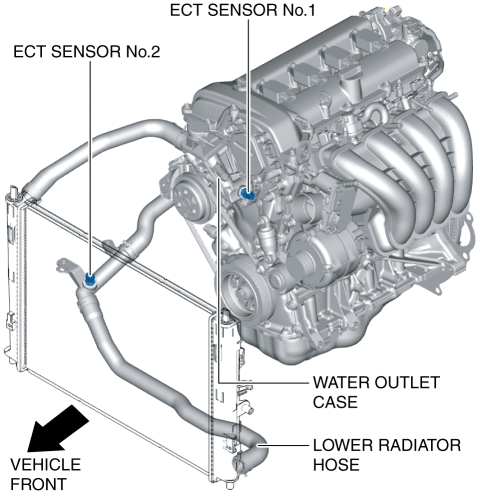

• ECT sensor is located on the water outlet case and lower radiator hose.

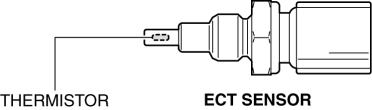

• A thermistor has been adopted for the detection part of the ECT sensor.



• A thermistor is a resistor element in which changes in the electrical resistance is large against temperature change. Using this characteristic, the sensor detects the engine coolant temperature as a resistance value.

Operation

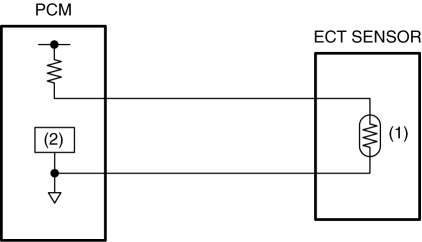

1. The ECT sensor detects (1) the engine coolant temperature.

2. The PCM detects (2) the engine coolant temperature by the voltage from the ECT sensor.

Fail-safe

ECT sensor No.1

ECT sensor No.2 (U.S.A. and CANADA)

• Not applicable
