TIRE PRESSURE MONITORING SYSTEM (TPMS)

Purpose

• The tire pressure monitoring system monitors the tire pressure of all 4 tires. If the tire pressure of 1 tire or more becomes excessively low, the driver is notified.

• A tire pressure monitoring system has been adopted which indirectly inspects the tire pressures and warns the driver.

• A switch for initializing the tire pressure monitoring system after the tire pressures have been adjusted is installed to the dashboard. (See TIRE PRESSURE MONITORING SYSTEM SET SWITCH.)

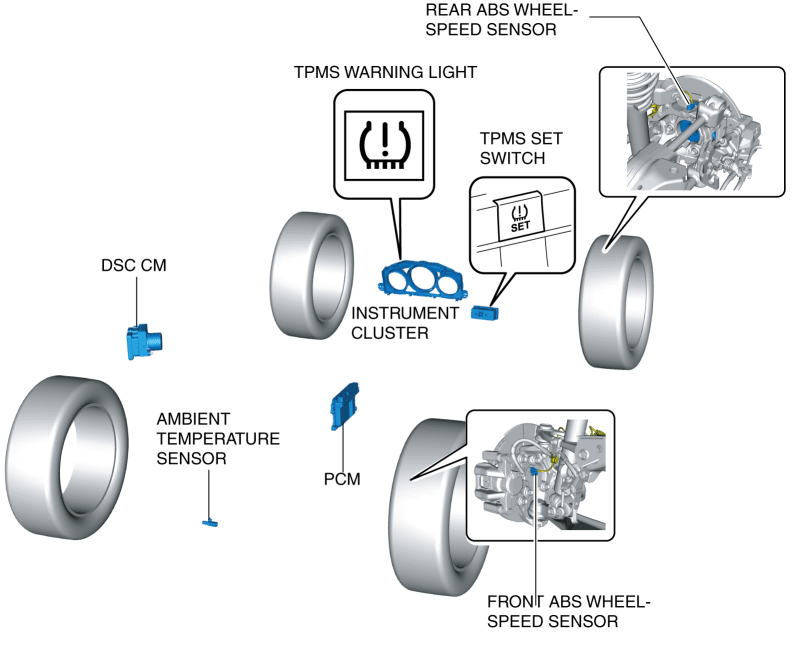

System structural view

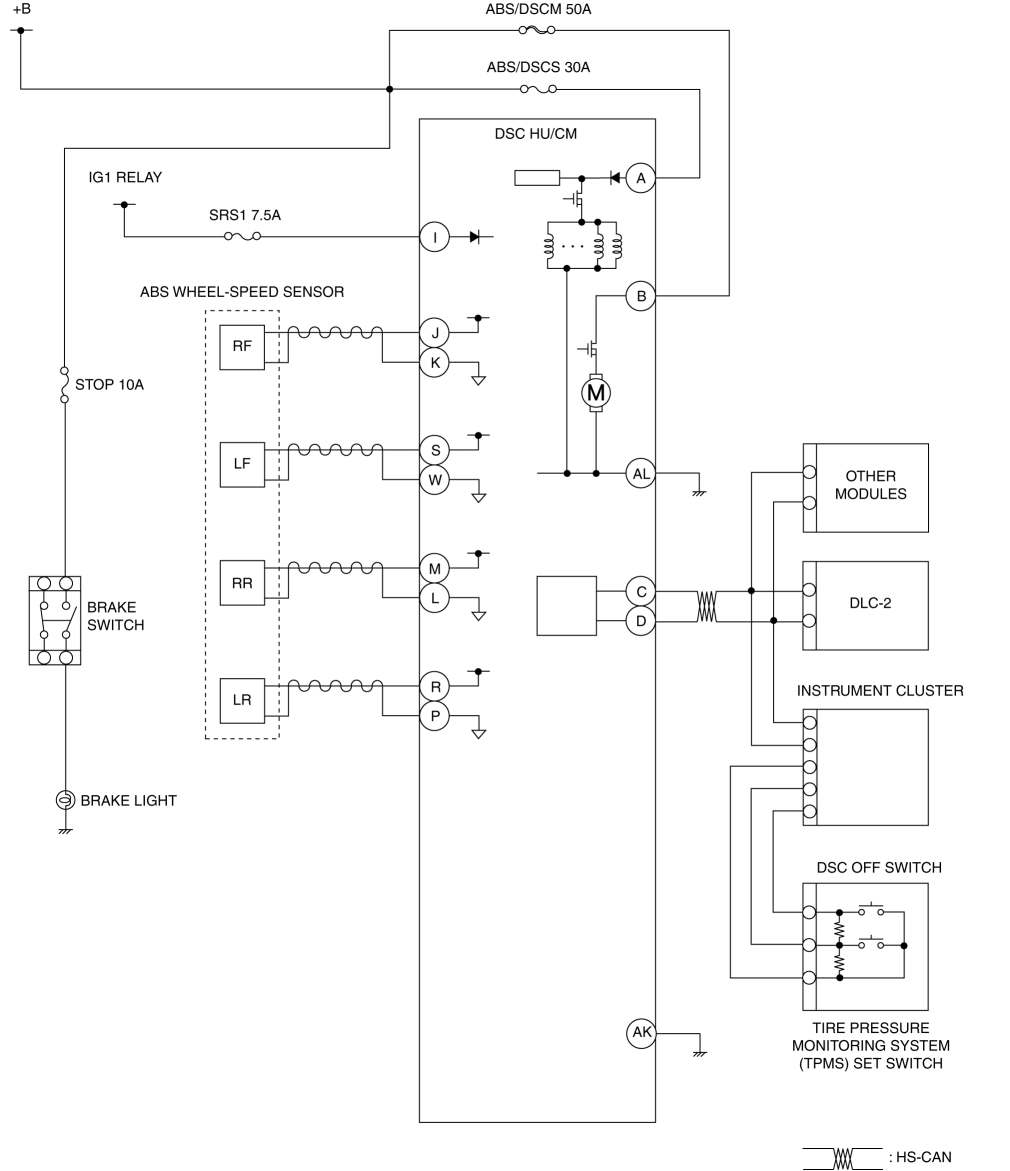

System wiring diagram

Detection method

Detection of the tire air pressure is performed by combining the following two methods.

• Dynamic loaded radius detection

  Detects the tire rotation speed using the ABS wheel speed sensor. The rotation speed of each of the wheels is compared to detect decreases in air pressure. Normally, the rotation speed of the 4 wheels is nearly the same, however, if a decrease in air pressure occurs in one tire, the dynamic loaded radius of the tire becomes smaller, the rotation speed of that tire increases, and a difference in rotation speed occurs. This method of detection is dynamic loaded radius detection. With the dynamic loaded radius detection method, if the tire pressure of all 4 tires decreases at the same level, a difference in tire rotation speed for each wheel does not occur and, therefore, detection is not possible.

• Torsion resonant frequency detection

  With torsion resonant frequency detection, detection of differences in tire air pressure is possible even if the tire pressure of all 4 tires decreases at the same level. This detection method uses the ABS wheel speed sensor signal the same as the dynamic loaded radius detection method. With resonant frequency detection, the signal from the ABS wheel speed sensor is analyzed in single pulse units and various wave frequencies are detected. Among these wave frequencies, the wave frequency synchronized to the air pressure is the torsion resonant frequency. Therefore, by monitoring the torsion resonant frequency, decreases in air pressure can be detected indirectly.

Function

• The tire pressure monitoring system consists of the following parts.

Operation

The tire pressure monitoring system operates as shown in the following figure.

Mis-use prevention logic

• The tire pressure monitoring system has a mis-use prevention logic which illuminates the tire pressure monitoring system warning light if the tire pressure monitoring system initialization is performed two times without adjusting the tire pressures even though the tire pressure monitoring system warning light was illuminated.

  The data at the point in time that the tire pressure monitoring system warning light was illuminated is compared with the data at the point in time that the tire pressure monitoring system was initialized, and if the difference is within the specified value, the mis-use prevention logic detects and counts the number of detections.

  If the detection is the first time, the tire pressure monitoring system warning light is not illuminated.

  If the detection is the second time, the tire pressure monitoring system warning light is illuminated.

• If the M-MDS is used to initialize the tire pressure monitoring system, the mis-use prevention logic is disabled.

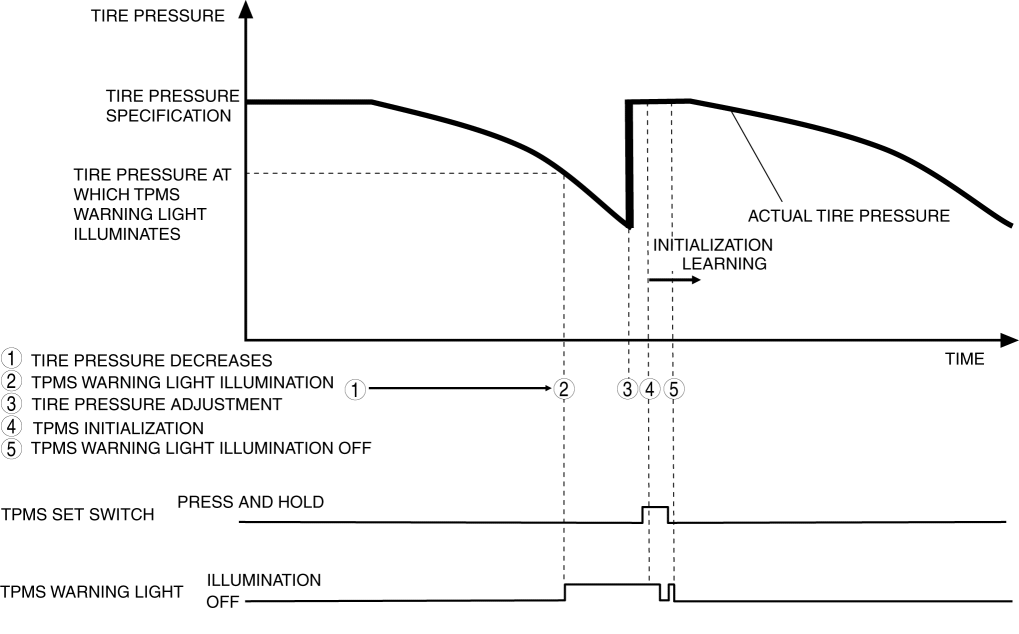

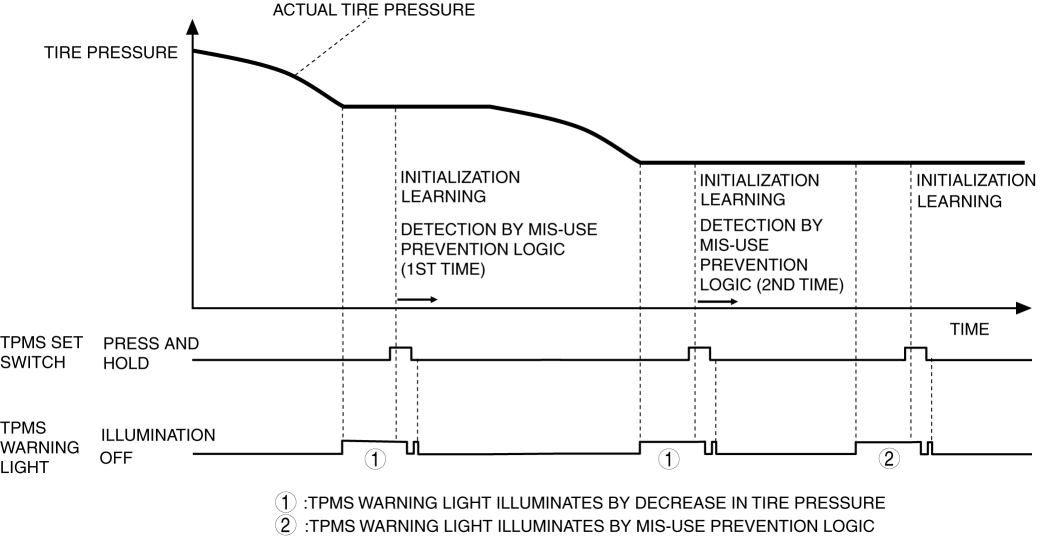

• The mis-use prevention logic operates as shown in the following figure.



Tire pressure monitoring system warning light does not illuminate

• Even if the tire pressure monitoring system is normal, if the following items apply, the tire pressure monitoring system warning light may not illuminate.

• Brake pedal is depressed

• DSC is operating

• Sudden steering wheel maneuvering

• Sudden acceleration/deceleration

• When vehicle is parked, stopped

Tire pressure monitoring system does not operate normally

• If the following items apply, the tire pressure monitoring system may not operate correctly.

• Initialized using tire pressure outside of tire pressure specification

• Tire pressure suddenly decreases (Ex. tire burst)

• During tire pressure monitoring system learning
