CONVENTIONAL BRAKE SYSTEM

Outline

  • A brake pedal with an intrusion minimizing mechanism has been adopted. As a result, driver safety has been improved.

  • A plunger-type master cylinder has been adopted, improving durability and response.

  • A electric vacuum pump has been adopted, improving braking force.

  • For the front brake (disc), a ventilated-type disc brake has been adopted.

  • For the rear brake (disc), a solid-type disc brake has been adopted.

Structural View

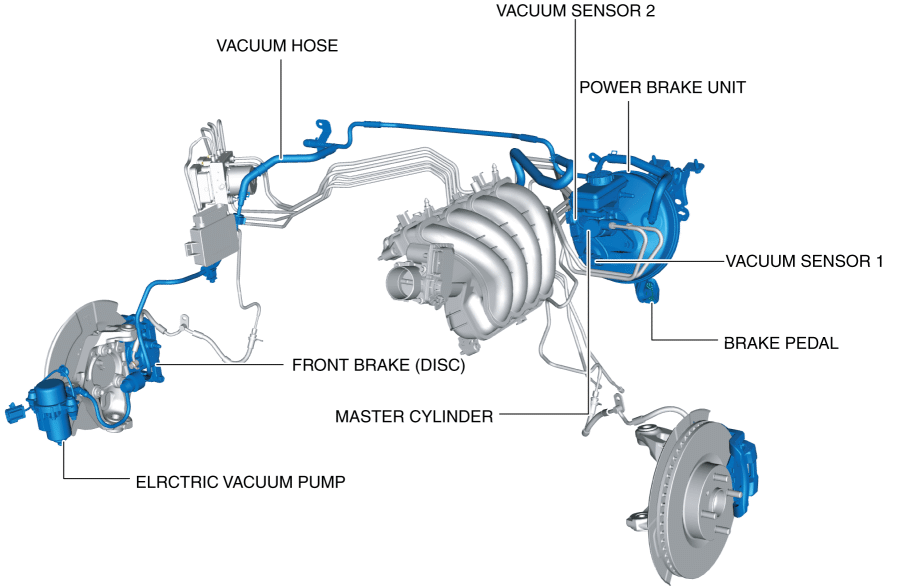

Vehicle front side

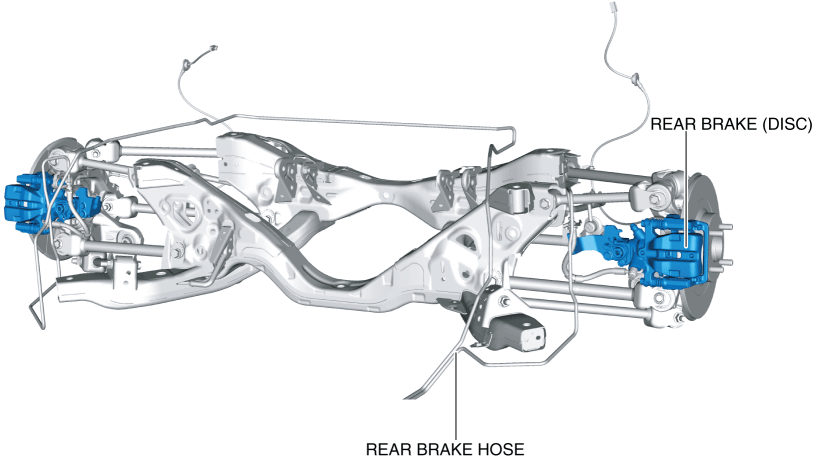

Vehicle rear side
