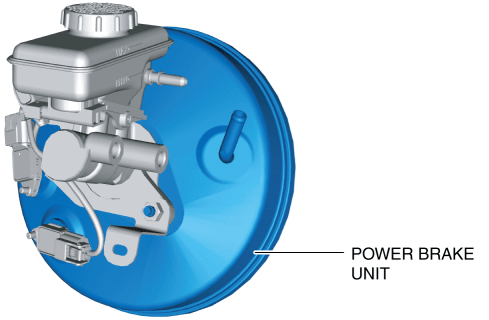

POWER BRAKE UNIT

Purpose/Function

  • A single diaphragm type power brake unit has been adopted, achieving compatibility between high braking performance and excellent brake feeling.

Construction

  • The power brake unit cannot be disassembled. Therefore, if there is any malfunction in the power brake unit, replace the power brake unit without disassembling.

Operation

  • The depression force of the brake pedal is increased using the vacuum from the vacuum pump, and the force is transmitted to the master cylinder.
