ON-BOARD DIAGNOSTIC SYSTEM OUTLINE [TCM (SJ6A-EL)]

Purpose/Function

  • An on-board diagnostic system has been adopted to improve serviceability.

  • An on-board diagnostic system has been adopted consisting of the following functions:

    • Malfunction detection function

    • Fail-safe function

    • Diagnostic data memory function

    • Malfunction indication function

      • Check engine light

      • Automatic transmission warning light

    • External tester communication function

      • DLC-2

      • CAN

    • PID/DATA monitor function

    • Simulation function

Construction/Operation

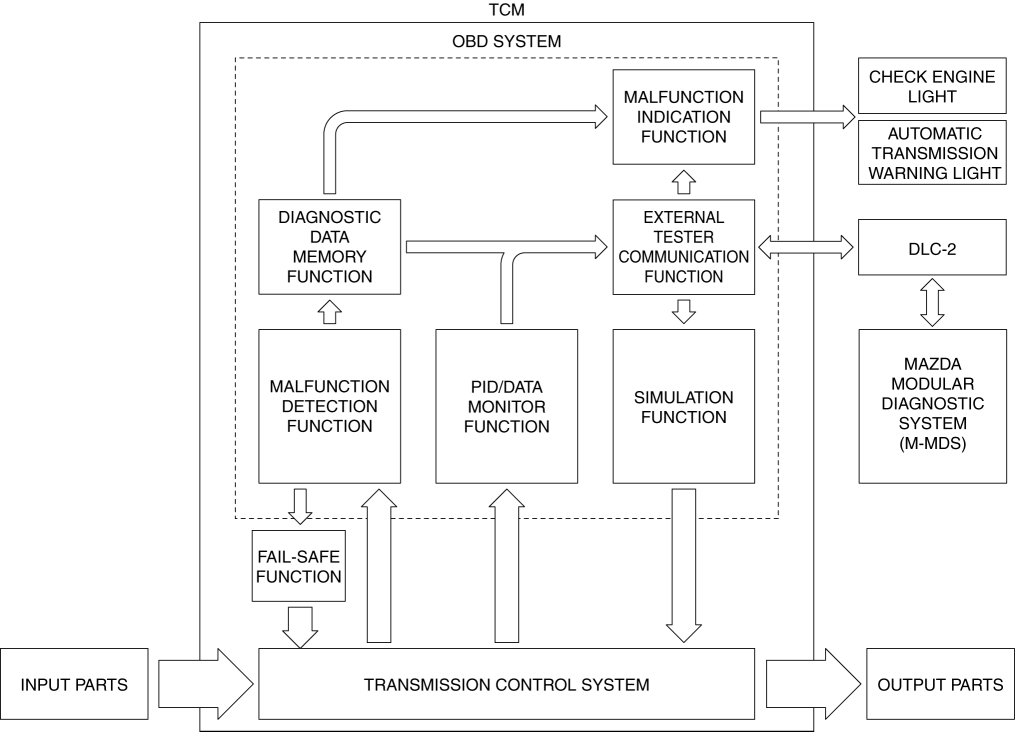

Block Diagram
