BLOWER MOTOR

Purpose, Function

  • The blower motor rotates the blower fan to send airflow.

Construction

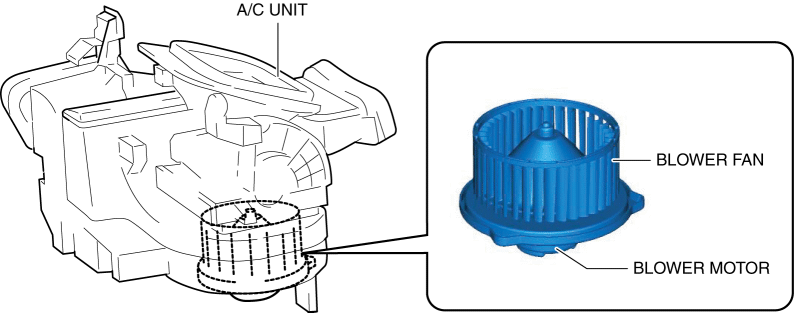

  • The blower motor is located on the A/C unit.

  • The blower motor consists of the blower fan and motor.

  • A sirocco fan has been adopted for the blower fan.

Operation

  • For the blower motor operation, refer to the [BLOWER SYSTEM]. (See BLOWER SYSTEM.)

Fail-safe

  • Not applicable
