CONDENSER
Purpose, Function
The condenser cools the high temperature, high pressure gaseous refrigerant circulating internally using airflow from the exterior and changes it to low temperature, high pressure liquid refrigerant.
Construction
The condenser is positioned at the front of the radiator.

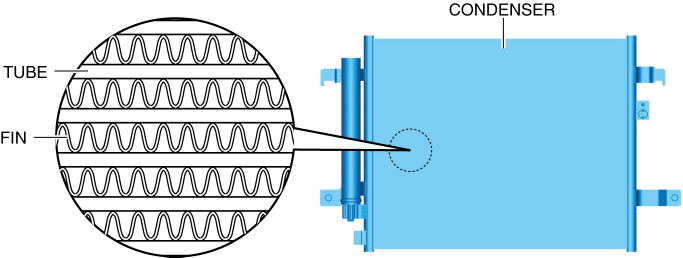

The condenser consists of the tube which passes refrigerant, and the heat radiation fin.

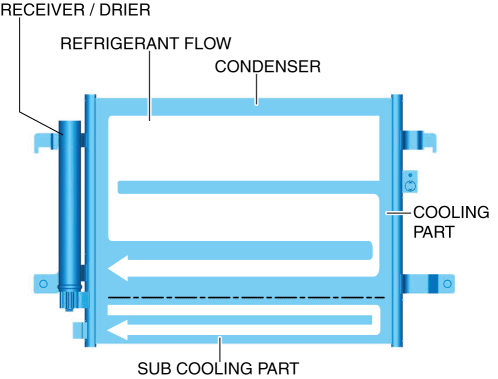

A multi-flow type (sub-cooling type) condenser has been adopted.
The multi-flow type (sub-cooling type) is integrated with the condenser and the receiver/drier.
The multi-flow type (sub-cooling type) separates the refrigerant, cooled once by the condenser, into vapor and liquid using the receiver/drier, and returns it to the sub-cooling part of the condenser again to cool it.
As a result, liquification of the refrigerant is promoted and cooling performance is improved.
Operation
For the condenser operation, refer to the [REFRIGERANT SYSTEM]. (See REFRIGERANT SYSTEM.)
Fail-safe
< Previous Next >
Not applicable
