REFRIGERANT LINE

Purpose

  • The refrigerant lines connect each of the parts in the refrigerant cycle.

Construction

  • Block-type piping has been adopted to the pipe connection, improving the efficiency of removal/installation related servicing.

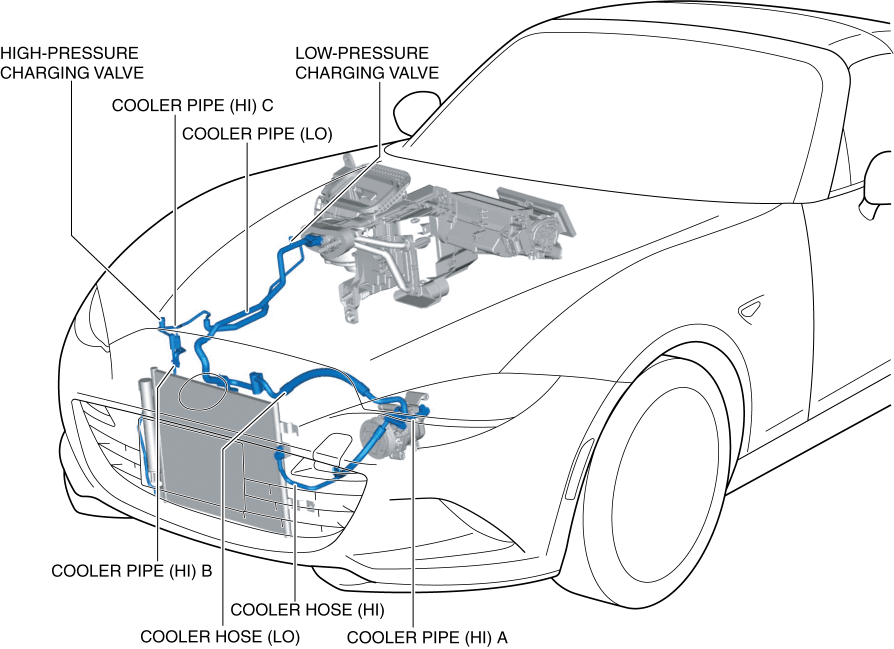

  • The pipes in the piping system consist of the following parts.

    • Cooler hose (HI)

    • Cooler hose (LO)

    • Cooler pipe (HI) A

    • Cooler pipe (HI) B

    • Cooler pipe (HI) C

    • Cooler pipe (LO)

  • The pipes in the piping system are made of aluminum alloy and the hoses are made of rubber (flexible hose).

  • A high-pressure charging valve is located on cooler pipe (HI) C and a low-pressure charging valve is located on the cooler pipe (LO).

Fail-safe

  • Not applicable
