HEATER CORE

Purpose, Function

  • Engine coolant is circulated inside the heater core.

Construction

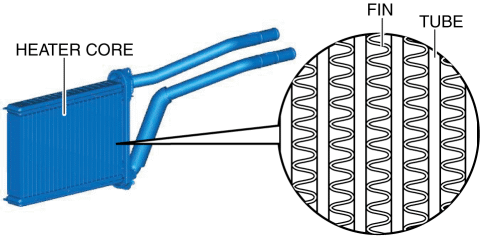

  • The heater core consists of a tube which passes engine coolant, and the heat radiation fins.

Operation

  • For the heater core operation, refer to the [HEATER SYSTEM]. (See HEATER SYSTEM.)

Fail-safe

  • Not applicable
