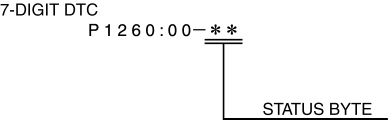

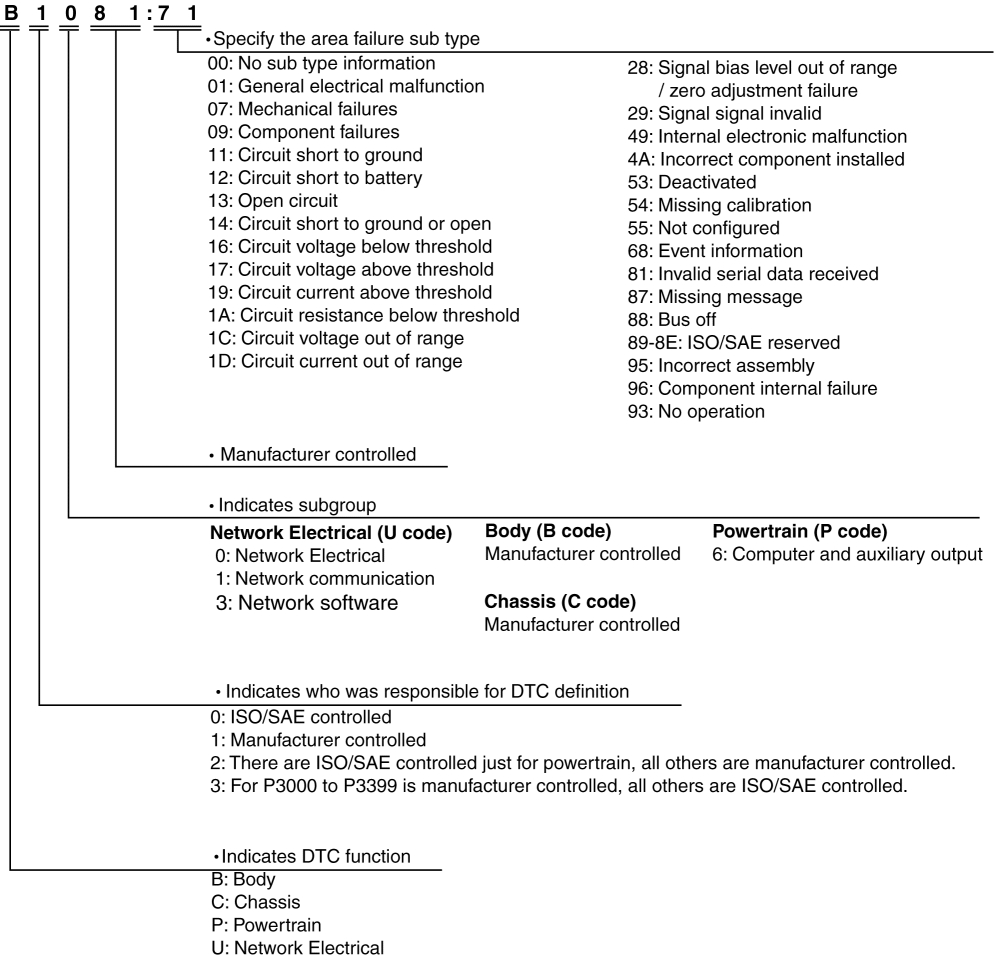

DTC

System malfunction location

Fail-safe function

Drive cycle

Self test type^*1

Memory function

M-MDS display

Air bag system warning light

Flashing pattern

Priority ranking

B0001:11

19

16

Driver-side air bag module (inflator No.1) circuit short to body ground

—

—

C, D

×

B0001:12

Driver-side air bag module (inflator No.1) circuit short to power supply

—

—

C, D

×

B0001:13

Driver-side air bag module (inflator No.1) circuit open circuit or resistance high

—

—

C, D

×

B0001:19

Short circuit to driver-side air bag module (inflator No.1) and other air bag module circuits

—

—

C, D

×

B0001:1A

Driver-side air bag module (inflator No.1) circuit short circuit or resistance low

—

—

C, D

×

B0001:55

54

7

Configuration setting error (driver-side air bag module (inflator No.1) structural malfunction)

—

—

C, D

×

B0002:11

19

16

Driver-side air bag module (inflator No.2) circuit short to body ground

—

—

C, D

×

B0002:12

Driver-side air bag module (inflator No.2) circuit short to power supply

—

—

C, D

×

B0002:13

Driver-side air bag module (inflator No.2) circuit open circuit or resistance high

—

—

C, D

×

B0002:19

Short circuit to driver-side air bag module (inflator No.2) and other air bag module circuits

—

—

C, D

×

B0002:1A

Driver-side air bag module (inflator No.2) circuit short circuit or resistance low

—

—

C, D

×

B0002:55

54

7

Configuration setting error (driver-side air bag module (inflator No.2) structural malfunction)

—

—

C, D

×

B0003:53

―

Flashing

4

Operation (deployment) inhibited due to configuration setting

—

—

C, D

×

B0010:11

21

15

Passenger-side air bag module (inflator No.1) circuit short to body ground

—

—

C, D

×

B0010:12

Passenger-side air bag module (inflator No.1) circuit short to power supply

—

—

C, D

×

B0010:13

Passenger-side air bag module (inflator No.1) circuit open circuit or resistance high

—

—

C, D

×

B0010:19

Short circuit to passenger-side air bag module (inflator no.1) and other air bag module circuits

—

—

C, D

×

B0010:1A

Passenger-side air bag module (inflator No.1) (inflator circuit short circuit or resistance low

—

—

C, D

×

B0010:55

54

7

Configuration setting error (passenger-side air bag module (inflator structural malfunction)

—

—

C, D

×

B0011:11

21

15

Passenger-side air bag module (inflator No.2) circuit short to body ground

—

—

C, D

×

B0011:12

Passenger-side air bag module (inflator No.2) circuit short to power supply

—

—

C, D

×

B0011:13

Passenger-side air bag module (inflator No.2) circuit open circuit or resistance high

—

—

C, D

×

B0011:19

Short circuit to passenger-side air bag module (inflator No.2) and other air bag module circuits

—

—

C, D

×

B0011:1A

Passenger-side air bag module (inflator No.2) circuit short circuit or resistance low

—

—

C, D

×

B0011:55

54

7

Configuration setting error (passenger-side air bag module (inflator No.2) structural malfunction)

—

—

C, D

×

B0072:11

34

17

Passenger-side lap pre-tensioner seat belt circuit short to body ground

—

—

C, D

×

B0072:12

Passenger-side lap pre-tensioner seat belt circuit short to power supply

—

—

C, D

×

B0072:13

Passenger-side lap pre-tensioner seat belt circuit open circuit or resistance high

—

—

C, D

×

B0072:19

Short circuit to passenger-side lap pre-tensioner seat belt and other air bag module circuits

—

—

C, D

×

B0072:1A

Passenger-side lap pre-tensioner seat belt circuit short circuit or resistance low

—

—

C, D

×

B0072:55

54

7

Configuration setting error (passenger-side lap pre-tensioner seat belt structural malfunction)

—

—

C, D

×

B0094:11

42

10

Driver-side crash zone sensor circuit short to body ground

—

—

C, D

×

B0094:12

Driver-side crash zone sensor circuit short to power supply

—

—

C, D

×

B0094:29

Driver-side crash zone sensor signal invalid

—

—

C, D

×

B0094:2B

Driver-side crash zone sensor circuit short to other air bag sensor circuit

—

—

C, D

×

B0094:4A

Driver-side crash zone sensor ID mismatch

—

—

C, D

×

B0094:87

Driver-side crash zone sensor circuit open

—

—

C, D

×

B0094:96

Driver-side crash zone sensor internal malfunction

—

—

C, D

×

B0094:55

54

7

Configuration setting error (driver-side crash zone sensor structural malfunction)

—

—

C, D

×

B00A0:55

Configuration setting error (occupant classification sensor structural malfunction)

—

—

D

×

B00A0:4A

15

6

Occupant classification sensor ID mismatch

—

—

C, D

×

B00A0:09

16

23

Occupant classification sensor internal malfunction

—

—

C, D

×

B00A0:28

Occupant classification sensor calibration setting invalid

—

—

D

×

B00A0:54

Occupant classification sensor calibration setting not set

—

—

C, D

×

B00A0:81

Occupant classification sensor memory check sum error

—

—

C, D

×

B00A0:87

No signal received from occupant classification sensor

—

—

C, D

×

B00C0:93

16

23

malfunction signal received from occupant classification sensor (occupant classification sensor mat structural malfunction)

—

—

C, D

×

B00C1:93

malfunction signal received from occupant classification sensor (occupant classification sensor shield mat structural malfunction)

—

—

C, D

×

B00D2:01

―

―

―

Air bag system warning light malfunction

—

—

C, D

×

B00D2:29

―

―

―

Invalid signal to air bag system warning light

—

—

C, D

×

B00D5:01

18

24

PAD indicator circuit open circuit or short to power supply

—

—

C, D

×

B00D5:29

PAD indicator communication error

—

—

C, D

×

B1011:95

58

8

SAS control module connectors are poorly connected

—

—

C, D

×

B10FD:11

43

14

Driver-side side air bag sensor or passenger-side pressure sensor circuit short to body ground

—

—

C, D

×

B10FD:12

Driver-side side air bag sensor or passenger-side pressure sensor circuit short to power supply

—

—

C, D

×

B10FD:29

Driver-side side air bag sensor signal invalid

—

—

C, D

×

B10FD:2B

Driver-side side air bag sensor or passenger-side pressure sensor circuit short to other air bag sensor circuit

—

—

C, D

×

B10FD:4A

Driver-side side air bag sensor ID mismatch

—

—

C, D

×

B10FD:87

Driver-side side air bag sensor circuit open

—

—

C, D

×

B10FD:96

Driver-side side air bag sensor internal malfunction

—

—

C, D

×

B10FD:55

54

7

Configuration setting error (driver-side side air bag sensor structural malfunction)

—

—

C, D

×

B10FE:11

44

13

Passenger-side side air bag sensor or driver-side pressure sensor circuit short to body ground

—

—

C, D

×

B10FE:12

Passenger-side side air bag sensor or driver-side pressure sensor circuit short to power supply

—

—

C, D

×

B10FE:29

Passenger-side side air bag sensor signal invalid

—

—

C, D

×

B10FE:2B

Passenger-side side air bag sensor or driver-side pressure sensor circuit short to other air bag sensor circuit

—

—

C, D

×

B10FE:4A

Passenger-side side air bag sensor ID mismatch

—

—

C, D

×

B10FE:87

Passenger-side side air bag sensor circuit open

—

—

C, D

×

B10FE:96

Passenger-side side air bag sensor internal malfunction

—

—

C, D

×

B10FE:55

54

7

Configuration setting error (passenger-side side air bag sensor structural malfunction)

—

—

C, D

×

B1126:11

22

22

Driver-side side air bag module circuit short to body ground

—

—

C, D

×

B1126:12

Driver-side side air bag module circuit short to power supply

—

—

C, D

×

B1126:13

Driver-side side air bag module circuit open circuit or resistance high

—

—

C, D

×

B1126:19

Short circuit to driver-side side air bag module and other air bag module circuits

—

—

C, D

×

B1126:1A

Driver-side side air bag module circuit resistance low

—

—

C, D

×

B1126:55

54

7

Configuration setting error (driver-side side air bag module structural malfunction)

—

—

C, D

×

B1127:11

23

21

Passenger-side side air bag module circuit short to body ground

—

—

C, D

×

B1127:12

Passenger-side side air bag module circuit short to power supply

—

—

C, D

×

B1127:13

Passenger-side side air bag module circuit open circuit or resistance high

—

—

C, D

×

B1127:19

Short circuit to passenger-side side air bag module and other air bag module circuits

—

—

C, D

×

B1127:1A

Passenger-side side air bag module circuit short circuit or resistance low

—

—

C, D

×

B1127:55

54

7

Configuration setting error (passenger-side side air bag module structural malfunction)

—

—

C, D

×

B1193:00

13

3

SAS control module operation (deployment)

—

—

C, D

×

B1206:00

―

―

―

SAS control module operation (deployment) (fuel cut signal output)

―

―

C, D

×

B1211:11

38

20

Driver-side pre-tensioner seat belt circuit short to body ground

—

—

C, D

×

B1211:12

Driver-side pre-tensioner seat belt circuit short to power supply

—

—

C, D

×

B1211:13

Driver-side pre-tensioner seat belt circuit open circuit or resistance high

—

—

C, D

×

B1211:19

Short circuit to driver-side pre-tensioner seat belt and other air bag module circuits

—

—

C, D

×

B1211:1A

Driver-side pre-tensioner seat belt circuit short circuit or resistance low

—

—

C, D

×

B1211:55

54

7

Configuration setting error (driver-side pre-tensioner seat belt structural malfunction)

—

—

C, D

×

B1214:11

39

19

Passenger-side pre-tensioner seat belt circuit short to body ground

—

—

C, D

×

B1214:12

Passenger-side pre-tensioner seat belt circuit short to power supply

—

—

C, D

×

B1214:13

Passenger-side pre-tensioner seat belt circuit open circuit or resistance high

—

—

C, D

×

B1214:19

Short circuit to passenger-side pre-tensioner seat belt and other air bag module circuits

—

—

C, D

×

B1214:1A

Passenger-side pre-tensioner seat belt circuit short circuit or resistance low

—

—

C, D

×

B1214:55

54

7

Configuration setting error (passenger-side pre-tensioner seat belt structural malfunction)

—

—

C, D

×

B1226:02

36

12

Signal reception error from driver or passenger-side pressure sensor

—

—

C, D

×

B1226:29

Driver-side pressure sensor internal malfunction

—

—

C, D

×

B1226:4A

Driver-side pressure sensor ID mismatch

—

—

C, D

×

B1226:87

Driver-side pressure sensor circuit open

—

—

C, D

×

B1226:96

Driver-side pressure sensor internal malfunction

—

—

C, D

×

B1226:55

54

7

Configuration setting error (driver-side pressure sensor structural malfunction)

—

—

C, D

×

B1227:29

37

11

Passenger-side pressure sensor internal malfunction

—

—

C, D

×

B1227:4A

Passenger-side pressure sensor ID mismatch

—

—

C, D

×

B1227:87

Passenger-side pressure sensor circuit open

—

—

C, D

×

B1227:96

Passenger-side pressure sensor internal malfunction

—

—

C, D

×

B1227:55

54

7

Configuration setting error (passenger-side pressure sensor structural malfunction)

—

—

C, D

×

B1228:11

35

18

Driver-side lap pre-tensioner seat belt circuit short to body ground

—

—

C, D

×

B1228:12

Driver-side lap pre-tensioner seat belt circuit short to power supply

—

—

C, D

×

B1228:13

Driver-side lap pre-tensioner seat belt circuit open circuit or resistance high

—

—

C, D

×

B1228:19

Short circuit to driver-side lap pre-tensioner seat belt and other air bag module circuits

—

—

C, D

×

B1228:1A

Driver-side lap pre-tensioner seat belt circuit short circuit or resistance low

—

—

C, D

×

B1228:55

54

7

Configuration setting error (driver-side lap pre-tensioner seat belt structural malfunction)

—

—

C, D

×

B1417:11

41

9

Passenger-side crash zone sensor circuit short to body ground

—

—

C, D

×

B1417:12

Passenger-side crash zone sensor circuit short to power supply

—

—

C, D

×

B1417:29

Passenger-side crash zone sensor signal invalid

—

—

C, D

×

B1417:2B

Passenger-side crash zone sensor circuit short to other air bag sensor circuit

—

—

C, D

×

B1417:4A

Passenger-side crash zone sensor ID mismatch

—

—

C, D

×

B1417:87

Signal reception error from passenger-side crash zone sensor

—

—

C, D

×

B1417:96

Passenger-side crash zone sensor internal malfunction

—

—

C, D

×

B1417:55

54

7

Configuration setting error (passenger-side crash zone sensor structural malfunction)

—

—

C, D

×

B143A:00

―

―

―

SAS control module operation (collision detection) signal output

—

—

C, D

×

C0061:29

―

―

―

Low-G sensor (lateral-G) in SAS control module (internal circuit disabled)

—

—

C, D

×

C0062:29

Low-G sensor (forward-G) in SAS control module (internal circuit disabled)

—

—

C, D

×

C0063:29

Yaw rate sensor in SAS control module (internal circuit disabled)

—

—

C, D

×

U0001:88

―

Continuously illuminated

1

Module communication error (HS-CAN)

—

—

C, D

×

U0100:00

14

5

Communication error with PCM

—

—

C, D

×

U0155:00

Communication error with instrument cluster

—

—

C, D

×

U2100:00

―

Flashing

4

Configuration not set

—

—

C, D

×

U2107:00

―

―

―

SAS control module operation (deployment) signal output

―

―

C, D

×

U3000:49

―

Continuously illuminated

1

SAS control module internal malfunction

—

—

C, D

×

12

2

U3003:16

―

Continuously illuminated

1

SAS control module power supply voltage decreases (8 V or less)

—

—

C, D

×

U3003:17

SAS control module power supply voltage increases (18 V or more)

—

—

C, D

×

Snapshot data item

Unit

Definition

Data read/use method

Corresponding PID data monitor item

AAT

°C

Ambient temperature

—

—

APP_STATUS

Accelerator Pedal Off/

Under20%/

Over20%/

FAIL

Accelerator pedal position status

—

—

CFG_STATUS

Config Complete/

Not Configured/

Config Error

Instrument cluster configuration status

—

—

ECT_STATUS

Under 0 degrees C/

0-Under 80 degrees C/

Over 80 degrees C/

FAIL

Engine coolant temperature status

—

—

FAULT_CNT

—

Number of malfunction detections

—

—

FIRST_DET_IG

ss^*1

Time when initial malfunction occurs (IG-ON counter)

• Elapsed time from when ignition is switched ON (engine off or on) until SAS control module detects first malfunction^*3

—

—

IC_VPWR

V

Instrument cluster power supply voltage

• The SAS control module constantly receives the power supply voltage value of the instrument cluster sent via CAN signal from the instrument cluster.

• If a DTC is detected, the SAS control module records the power supply voltage of the instrument cluster when the DTC was detected, and it is displayed in the Mazda Modular Diagnostic System (M-MDS).

VPWR^*2

IG-ON_TIMER

ss^*1

Elapsed time since ignition was switched ON (engine off or on)

NOTE:

• The instrument cluster records the elapsed time since the ignition was switched ON (engine off or on).

• The SAS control module constantly receives the elapsed time since the ignition was switched ON (engine off or on) sent via CAN signal from the instrument cluster.

• If a DTC is detected, the SAS control module records the elapsed time since the ignition was switched ON (engine off or on) when the DTC was detected, and it is displayed in the Mazda Modular Diagnostic System (M-MDS).

—

LAST_CLR

ss^*1

Repair time for last malfunction (B+ counter)

• Elapsed time from when battery is connected until SAS control module detects that last malfunction is repaired^*3

—

—

LAST_CLR_IG

ss^*1

Repair time for last malfunction (IG-ON counter)

• Elapsed time from when ignition is switched ON (engine off or on) until SAS control module detects that last malfunction is repaired^*3

—

—

LAST_DET

ss^*1

Time when last malfunction occurs (B+ counter)

• Elapsed time from when battery is connected until SAS control module detects last malfunction^*3

—

—

LAST_DET_IG

ss^*1

Time when last malfunction occurs (IG-ON counter)

• Elapsed time from when ignition is switched ON (engine off or on) until SAS control module detects last malfunction^*3

—

—

PWR_MODE_KEY

Key Out/

Key Recently Out (Position 0)/

Accessory (Position 1)/

Post Ignition (Position 2)/

Ignition On (Position 2)/

Running (Position 2)/

Running - Starting

• Key Out: Ignition switched off

• Key Recently Out (Position 0): Elapsed time within 3 s since ignition was switched off

• Accessory (Position 1): Ignition is switched to ACC

• Post Ignition (Position 2): Elapsed time within 3 s since ignition was switched ON (engine off or on)

• Ignition On (Position 2): Ignition switched ON (engine off)

• Running (Position 2): Ignition switched ON (engine on)

• Running - Starting: Cranking condition

• The SAS control module constantly receives the ignition switch status sent via CAN signal from the instrument cluster.

• If a DTC is detected, the SAS control module records the ignition switch status when the DTC was detected, and it is displayed in the Mazda Modular Diagnostic System (M-MDS).

—

RPM_STATUS

Engine Stop/

Under1500rpm/

Over1500rpm/

FAIL

Engine speed status

• The SAS control module constantly receives the engine speed sent via CAN signal from the instrument cluster.

• If a DTC is detected, the SAS control module records the engine speed when the DTC was detected, and it is displayed in the Mazda Modular Diagnostic System (M-MDS).

TACHOMTR^*2

SHIFT_STATUS

P/N/

D/

R/

FAIL

Selector lever position status

• The SAS control module constantly receives the selector lever position sent via CAN signal from the instrument cluster.

• If a DTC is detected, the SAS control module records the selector lever position when the DTC was detected, and it is displayed in the Mazda Modular Diagnostic System (M-MDS).

—

TOTAL_DIST

km

Accumulated total traveled distance from completion of vehicle until SAS control module detects DTC (Odometer value in instrument cluster)

The total traveled distance from which the SAS control module detects DTCs to the present can be calculated by performing the following procedure.

• Verify the odometer value in the instrument cluster.

• Verify the snapshot data item TOTAL_DIST.

• Subtract 2 from 1.

—

TOTAL_TIME

ss^*1

Accumulated total elapsed time since vehicle completion until SAS control module detects a DTC^*3

NOTE:

• When the ROOM fuse is removed, and the ignition is switched off, the time is not included in the elapsed time.

The elapsed time from which the SAS control module detects DTCs to the present can be calculated by performing the following procedure.

• Verify the instrument cluster PID item TOTAL_TIME.

• Verify the snapshot data item TOTAL_TIME.

• Subtract 2 from 1.

TOTAL_TIME^*2

VPWR

V

SAS control module power supply malfunction

—

VPWR_IGA

VSPD_STATUS

Stop/

0-10km/h/

Over10km/h/

FAIL

Vehicle speed status

• The SAS control module constantly receives the vehicle speed sent via CAN signal from the instrument cluster.

• If a DTC is detected, the SAS control module records the vehicle speed when the DTC was detected, and it is displayed in the Mazda Modular Diagnostic System (M-MDS).

SPEEDOMTR^*2

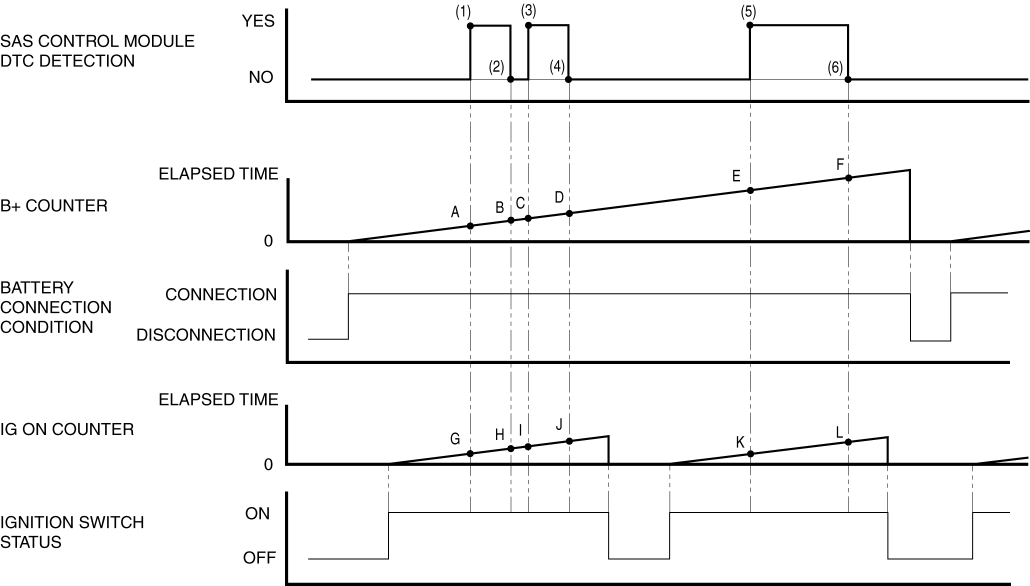

SAS control module DTC detection period

Snapshot data

FAULT_CNT

(Number of malfunction detections)

TOTAL_TIME

FIRST_DET_IG

LAST_DET

LAST_DET_IG

LAST_CLR

LAST_CLR_IG

Number of malfunction detections

Time when first malfunction occurs (B+ counter)

Time when initial malfunction occurs (IG-ON counter)

Time when last malfunction occurs (B+ counter)

Time when last malfunction occurs (IG-ON counter)

Repair time for last malfunction (B+ counter)

Repair time for last malfunction (IG-ON counter)

(1)

1

A

G

A

G

-

-

(2)

1

A

G

A

G

B

H

(3)

2

A

G

C

I

B

H

(4)

2

A

G

C

I

D

J

(5)

3

A

G

E

K

D

J

(6)

3

A

G

E

K

F

L

PID

Unit/Condition

Data contents

SAS control module terminal

AB_WL

(Air bag system warning light status)

Lamp_Off/Lamp_On/Plant_Mode/Unknown

• Air bag system warning light off: Lamp_Off

• Air bag system warning light on: Lamp_On

• Air bag system warning light status: Plant_Mode

• Air bag system warning light status: Unknown

3Q, 3S

OCS_DTC_CLR

(Occupant classificationsensor DTC cleared status)

Starting/Normal End/In Process/OCS Fault

Fault information cleared status occupant classification sensor

3Q, 3S

P_OCS_ST

(Occupant classification sensor status)

Empty/SMALL/Indeterminate/LARGE

Occupant classification status determinated by occupant classification sensor

3Q, 3S

P_SEAT_M_S

(Occupancy sensor)

NOTE:

• Displays in the M-MDS but it does not operate.

RES_F_AB1_D

(Driver-side air bag module (inflatorNo.1) resistance nominal)

ohm

Continuous: 1.37–6.33 ohms

3C, 3G

RES_F_AB1_P

(Passenger-side air bag module (inflatorNo.1) resistance nominal)

ohm

Continuous: 0.88–6.33 ohms

3K, 3N

RES_F_AB2_D

(Driver-side air bag module (inflatorNo.2) resistance nominal)

ohm

Continuous: 1.37–6.33 ohms

3U, 3W

RES_F_AB2_P

(Passenger-side air bag module (inflator No.2) resistance nominal)

ohm

Continuous: 0.88–6.33 ohms

3AA, 3Z

RES_S_AB_D

(Driver-side side air bag module resistance nominal)

ohm

Continuous: 0.88–10.53 ohms

1C, 1G

RES_S_AB_P

(Passenger-side side air bag module resistance nominal)

ohm

Continuous: 0.88–10.53 ohms

1K, 1N

RES_SB_LP_D

(Driver-side lap pre-tensioner seat belt resistance nominal)

ohm

Continuous: 0.88–6.33 ohms

2B, 2F

RES_SB_LP_P

(Passenger-side lap pre-tensioner seat belt resistance nominal)

ohm

Continuous: 0.88–6.33 ohms

2J, 2M

RES_SB_P_D

(Driver-side pre-tensioner seat belt resistance nominal)

ohm

Continuous: 0.88–6.33 ohms

2C, 2G

RES_SB_P_P

(Passenger-side pre-tensioner seat belt resistance nominal)

ohm

Continuous: 0.88–6.33 ohms

2K, 2N

PCD_A

(Poorly connected detector bar terminal voltage nominal (SAS control module connector A))

V

• Normal connected: 0.27 V or less

• Poor connected: 3.17 V or more

1a, 1b

PCD_B

(Poorly connected detector bar terminal voltage nominal (SAS control module connector B))

V

• Normal connected: 0.27 V or less

• Poor connected: 3.17 V or more

2a, 2b

PCD_C

(Poorly connected detector bar terminal voltage nominal (SAS control module connector C))

V

• Normal connected: 0.27 V or less

• Poor connected: 3.17 V or more

3a, 3b

SEAT_B_D

(Driver-side buckle switch status)

Unbuckled/Buckled

• Driver-side seat belt fastened (Driver-side buckle switch off): Buckled

• Driver-side seat belt not fastened (Driver-side buckle switch on): Unbuckled

2U

SEAT_B_P

(Passenger-side buckle switch status)

Unbuckled/Buckled

• Passenger-side seat belt fastened (Passenger-side buckle switch off): Buckled

• Passenger-side seat belt not fastened (Passenger-side buckle switch on): Unbuckled

2W

VPWR_IGA

(SAS control module power voltage)

V

Ignition is switched ON: IG1 voltage

2AD
