DOOR LOCK-LINK SWITCH

Purpose

  • Switches on/off in conjunction with the door lock/unlock, and the door lock/unlock condition is output to the BCM.

Function

  • Switches the contact point of the door lock-link switch in conjunction with the door lock/unlock operation.

Construction

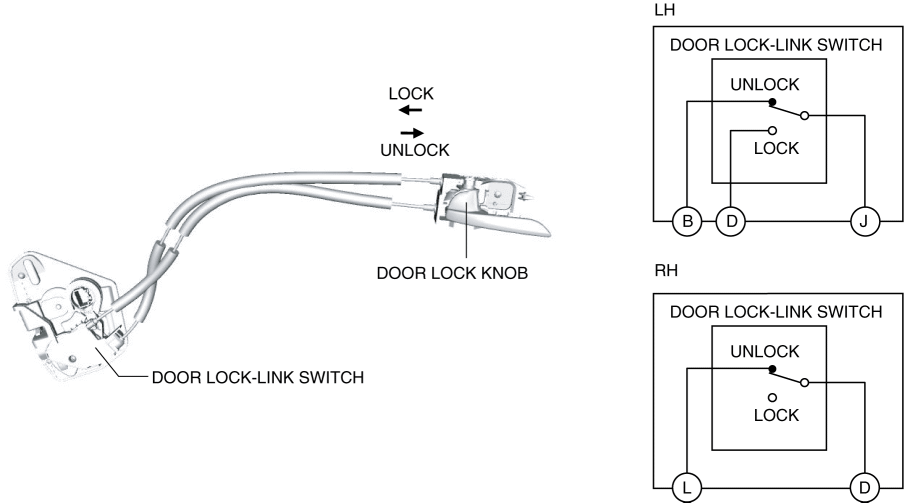

  • The door lock knob and door lock-link switch are connected by the door lock-link cable, and are built into the door latch and lock actuator.

Operation

Lock operation

  • When the door lock knob is turned to the lock position, the door lock-link cable is pressed, and the door lock-link switch is switched to the lock side.

Unlock operation

  • When the door lock knob is turned to the unlock position, the door lock-link cable is pulled, and the door lock-link switch is switched to the unlock side.

Fail-safe

  • Not applicable
