KEYLESS ANTENNA [ADVANCED KEYLESS ENTRY SYSTEM]

Purpose

  • Outputs a request signal and specifies the remote transmitter location.

Functions

  • The keyless antenna outputs request signals to the inside and outside of the vehicle based on the signals from the LF control unit.

Construction/Operation

  • The antennas for request signal output form the request signal output range at 6 locations.

Request signal output range

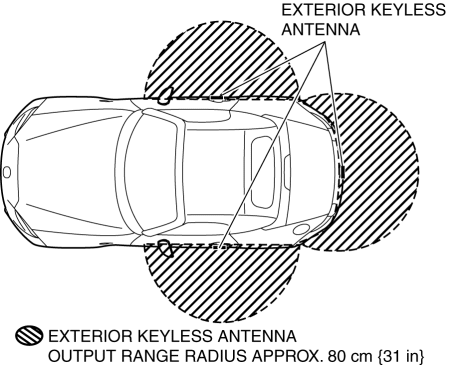

  • The keyless antennas for the vehicle exterior (LF, RF, rear) form the request signal output area in the range of an approx. 80 cm {31 in} radius from each location and communicate with the remote transmitter.

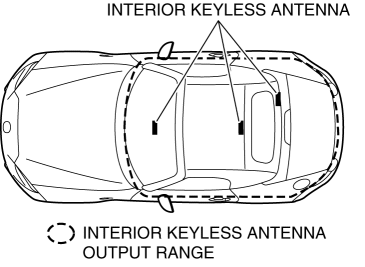

  • The keyless antennas for the vehicle interior (front, center, rear) form the output range inside the vehicle.

Fail-safe

  • Not applicable
