CUP HOLDER

Purpose, Function

  • Removable cup holders have been adopted which can be installed interchangeably to different positions.

Construction

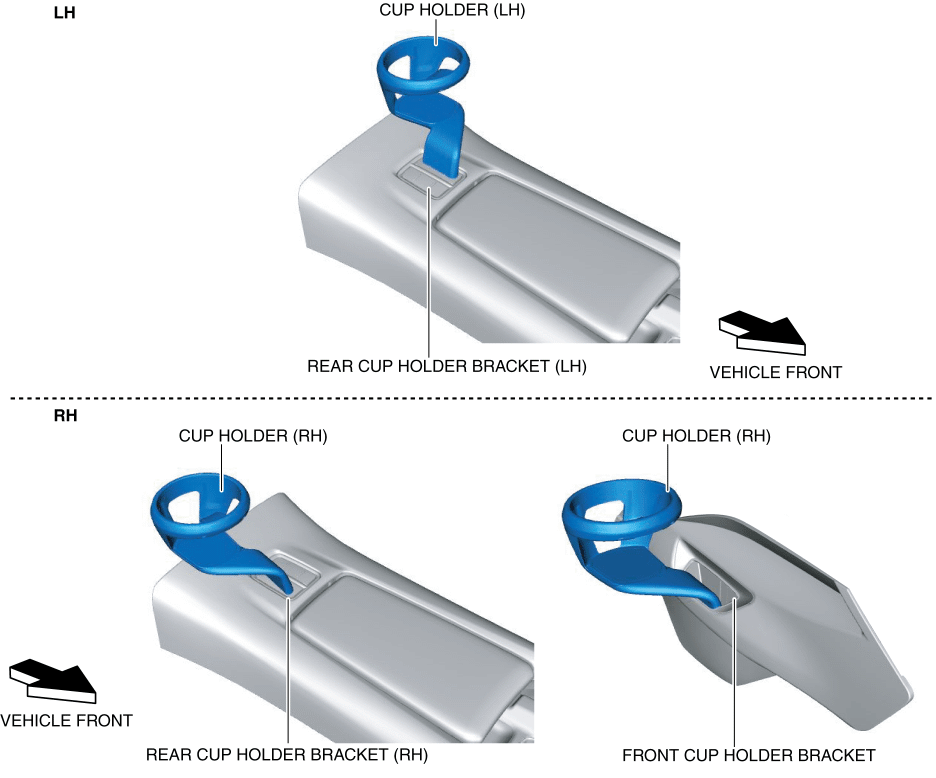

  • The cup holder (LH) can be placed in the rear cup holder bracket (LH).

  • The cup holder (RH) can be placed in the front cup holder bracket and rear cup holder bracket (RH).

NOTE:

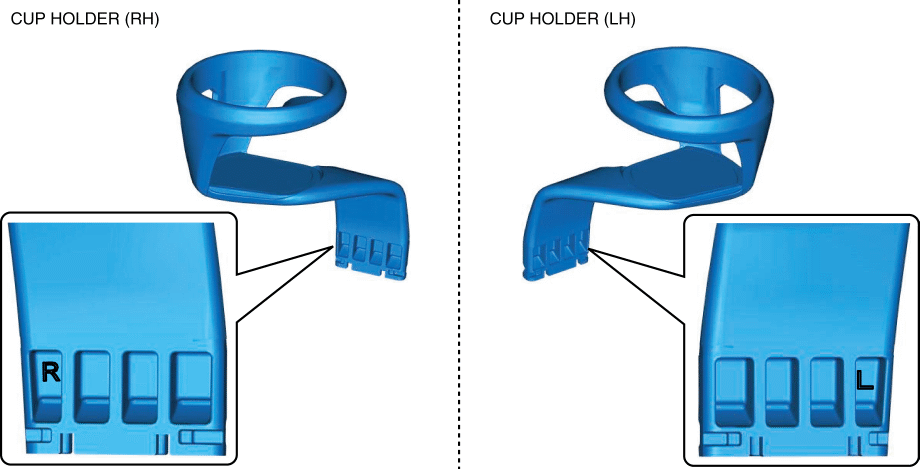

  • The cup holder (LH)/cup holder (RH) can be verified by its mark at the position shown in the figure.

  • When the cup holder is inserted into the rear cup holder bracket, the notch of the cup holder and the tab are engaged to secure the cup holder.

Fail-safe

  • Not applicable
