HIGH-MOUNT BRAKE LIGHT

Purpose

  • The high-mount brake light signals vehicles to the rear that the vehicle is decelerated or stopping.

Function

  • The high-mount brake light turns on in conjunction with the operation of the brake switch.

Construction

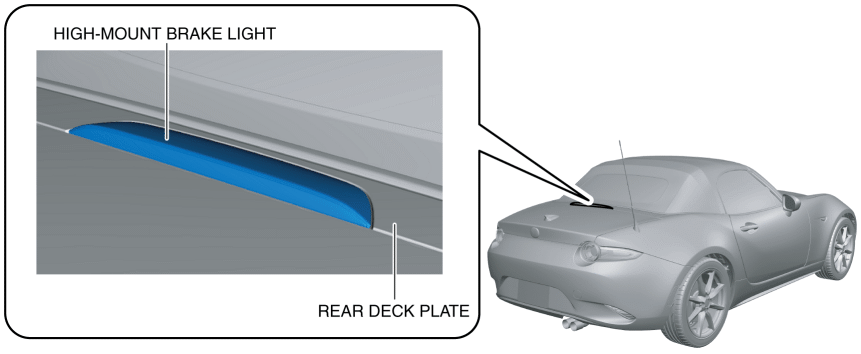

  • The high-mount brake light is positioned on the rear deck plate.

  • LEDs have been adopted for the high-mount brake light.

NOTE:

  • Fogging or condensation on the inside of the high-mount brake light may occur, however, it is a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the high-mount brake light and it does not affect the light performance.

  • Fogging or condensation occurring as a natural phenomenon will dissipate when the temperature inside the high-mount brake light rises after the high-mount brake light is turned on and a period of time has elapsed.

Operation

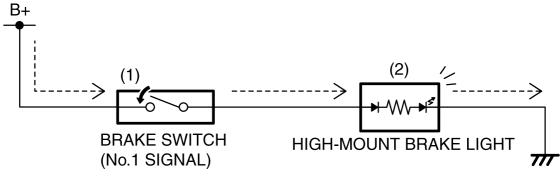

1. When the brake pedal is depressed, the brake switch (No.1 signal) turns on (1).
2. When the brake switch (No.1 signal) turns on, the high-mount brake light turns on (2).

Fail-safe

  • Not applicable
