INTERIOR LIGHTING SYSTEM

Outline

  • A room light control system has been adopted in which the illumination time and illumination level of the interior lights change.

Function

  • The BCM turns the interior light on/off based on each switch and door/trunk lid open/close condition signal.

Interior light off function

  • When the BCM receives a lock signal on the remote transmitter with the ignition switched off and all doors/trunk lid closed, it automatically turns the interior light off.

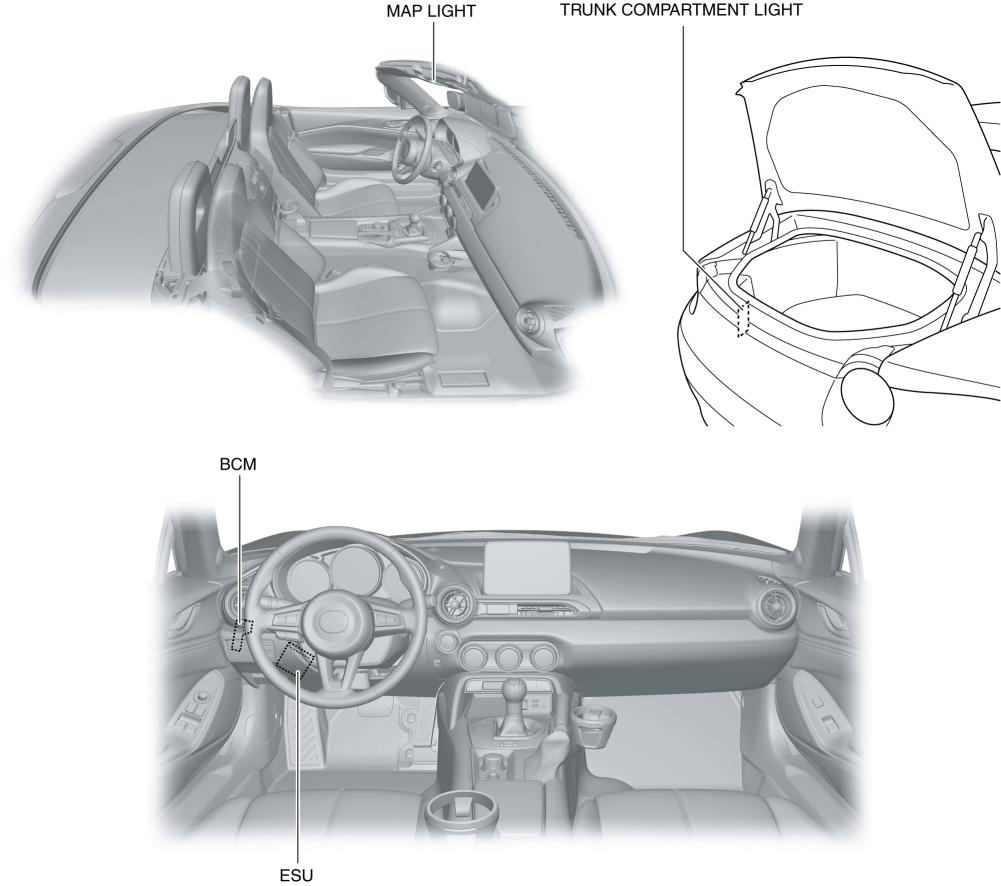

Structural View

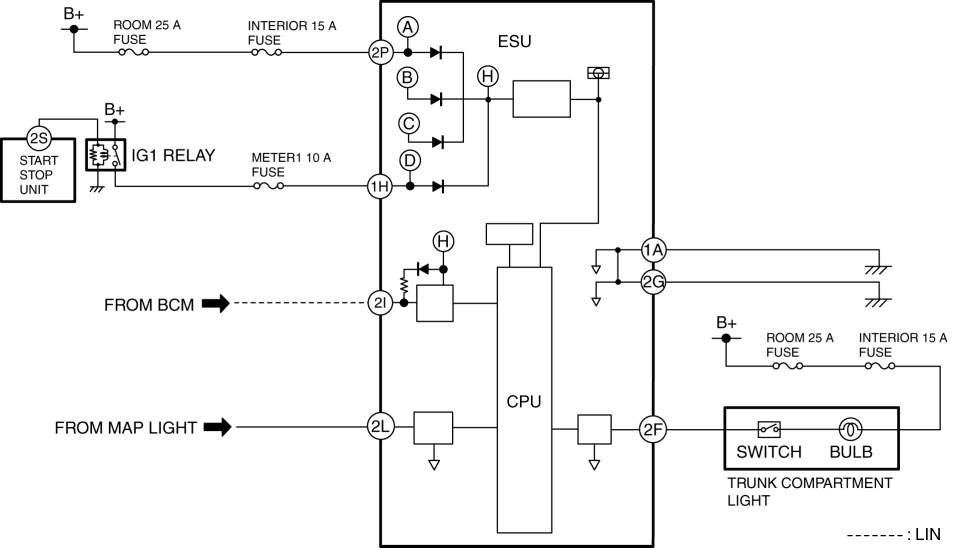

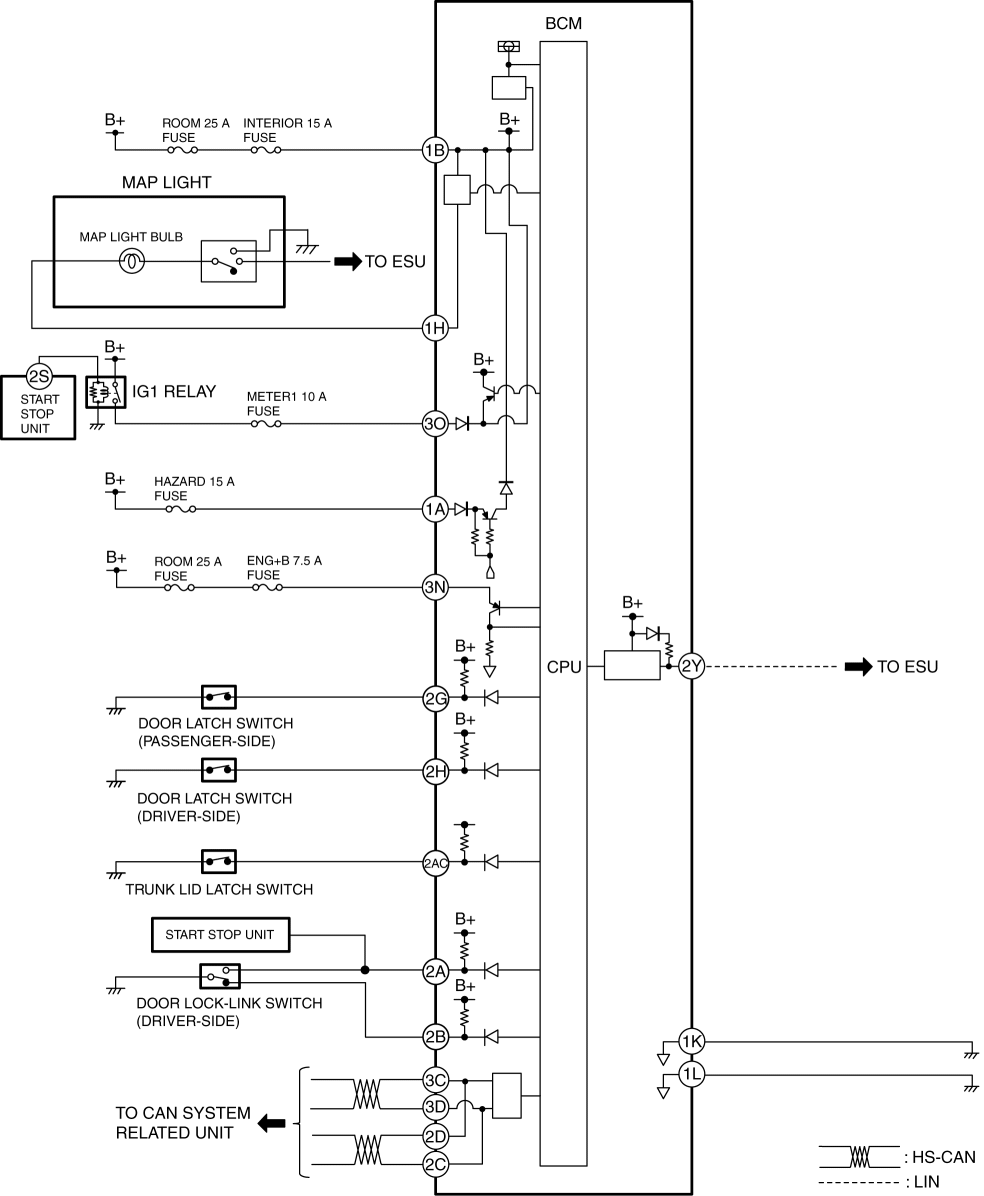

System Wiring Diagram
