CD PLAYER [WITHOUT CENTER DISPLAY]

Purpose, Function

  • The CD player sends the audio signal and music information, such as the album name and artist name of the inserted CD, to the audio unit.

Specification

Type

Playback function file

Music/MP3/WMA/AAC CD player

  • Music data (CD-DA)

  • MP3/WMA (Windows Media Audio)/AAC (Advanced Audio Coding) files

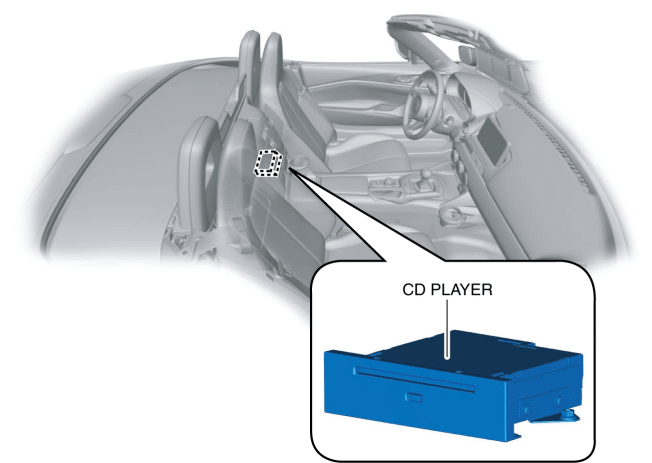

Construction

  • The CD player is located in the back trim.

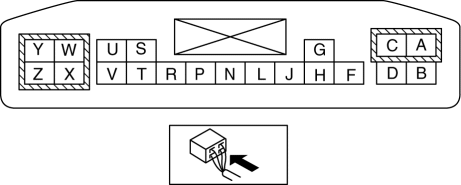

Input/output signal table

Terminal

Signal

A

Ground

B

—

C

—

D

Illumination power supply (-)

F

—

G

Local MS-CAN_H

H

Local MS-CAN_L

J

—

L

CD audio output LH (+)

N

CD audio output LH (-)

P

CD audio output RH (+)

R

CD audio output RH (-)

S

—

T

—

U

—

V

—

W

TNS (Parking Lights) signal input

X

—

Y

ACC

Z

B+

Operation

Fail-safe

  • Not applicable
