SPEEDOMETER

Purpose

  • The speedometer notifies the driver of the speed at which the vehicle is traveling.

Functions

  • The instrument cluster displays the current vehicle speed based on the vehicle speed signal from the PCM.

Construction

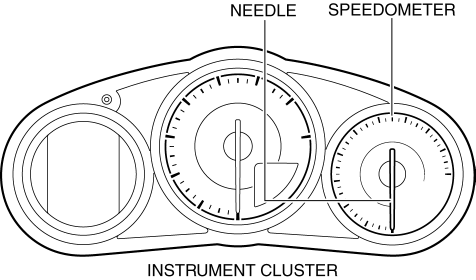

  • An analog needle display speedometer with a stepping motor mechanism has been adopted.

Operation

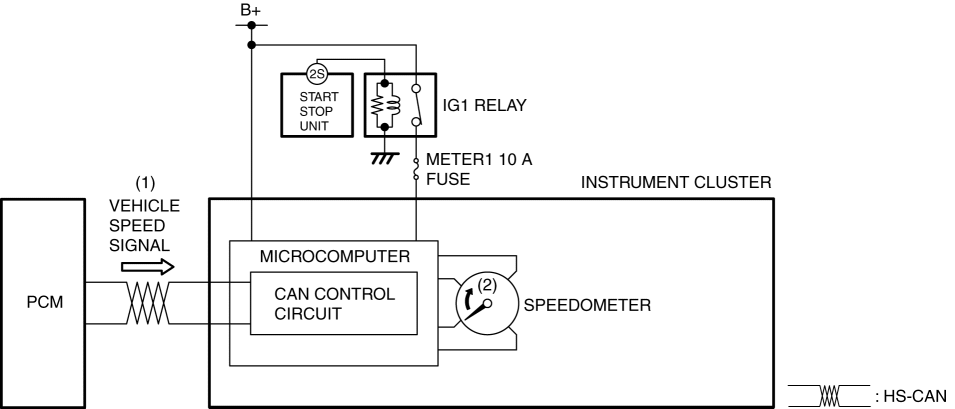

1. The instrument cluster displays (2) the current vehicle speed when it receives (1) a vehicle speed signal via CAN communication from the PCM with the ignition is switched ON (engine on).

Fail-safe

  • Not applicable
