i-ACTIVSENSE

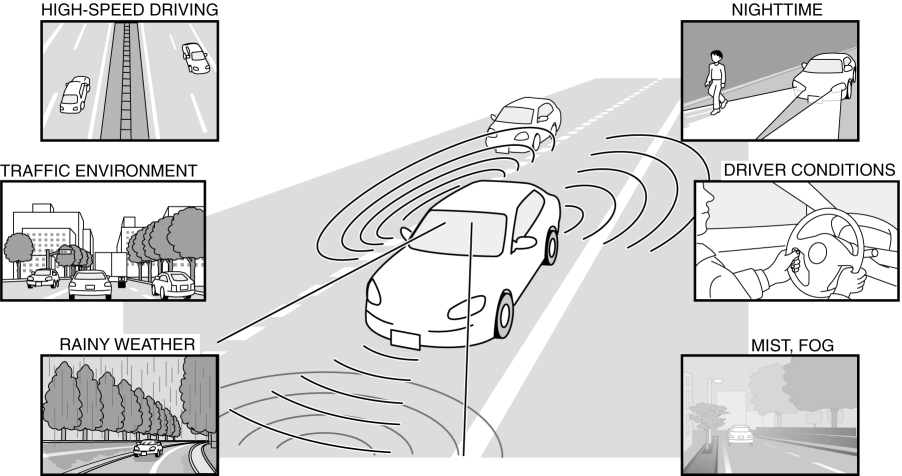

Outline

  • i-ACTIVSENSE is a collective term covering a series of advanced safety and driver support systems which make use of detection devices such as the forward sensing camera (FSC).

  • The following systems have been adopted.

System

Outline

Reference

High Beam Control (HBC) System

The High Beam Control (HBC) system turns the headlights HI off when the forward sensing camera (FSC) installed to the windshield recognizes a vehicle ahead and when traveling through towns and cities while the vehicle is being driven with the headlights HI turned on. Due to this, blinding of other vehicles from headlight glare is prevented and driver visibility is assured.

(See HIGH BEAM CONTROL (HBC) SYSTEM.)

Lane departure warning system (LDWS)

The Lane Departure Warning System (LDWS) recognizes vehicle lane lines on a road using the forward sensing camera (FSC) installed to the windshield, and if the vehicle departs from its lane unbeknownst to the driver, the system alerts the driver of the lane departure using a warning indication and warning sound.

(See LANE DEPARTURE WARNING SYSTEM (LDWS).)

Adaptive front lighting system (AFS)

The adaptive front lighting system (AFS) is a system which enhances the range of visibility when the headlights are turned on by pointing the optical axis of the headlights in the direction in which the steering wheel is operated according to the steering operation.

(See ADAPTIVE FRONT LIGHTING SYSTEM (AFS).)

Blind spot monitoring (BSM) system

The blind spot monitoring (BSM) system detects a vehicle in the blind-spot area at the rear of the vehicle to alert the driver of the possible collision with a target vehicle using the blind spot monitoring (BSM) indicator light on the outer mirror glass, the rear crossing traffic alert (RCTA) indicator light displayed on the rear view monitor screen, and the blind spot monitoring (BSM) warning alarm.

(See BLIND SPOT MONITORING (BSM) SYSTEM.)

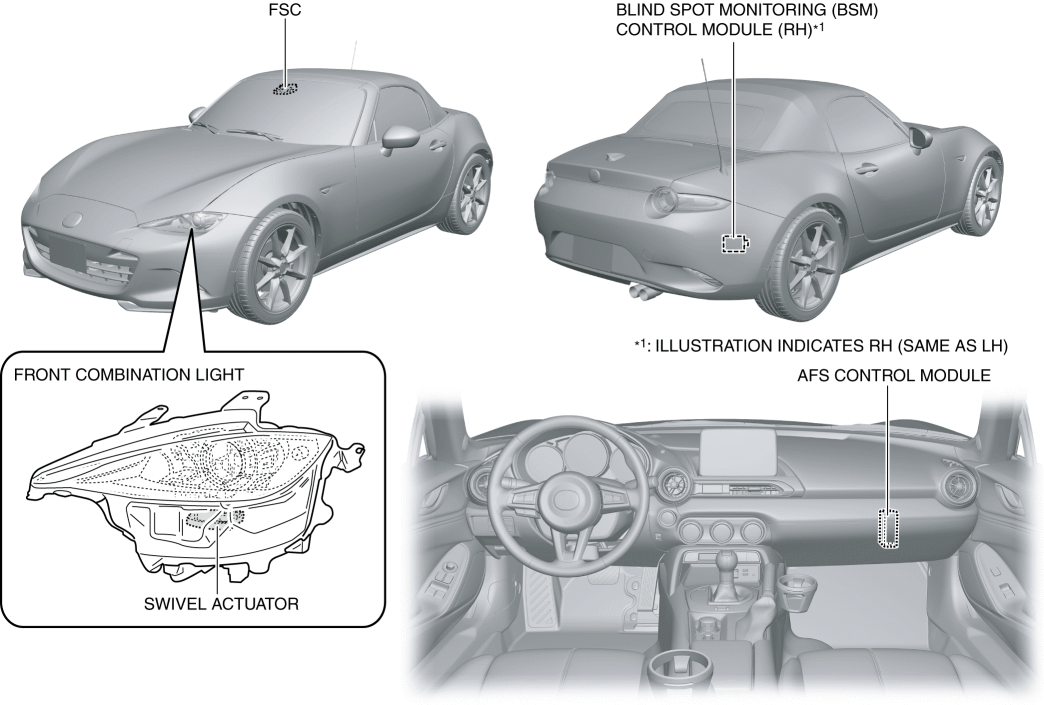

Structural View

×: Applicable—: Not applicable

Part

Related item

HIGH BEAM CONTROL (HBC) SYSTEM

LANE DEPARTURE WARNING SYSTEM (LDWS)

ADAPTIVE FRONT LIGHTING SYSTEM (AFS)

BLIND SPOT MONITORING (BSM) SYSTEM

FORWARD SENSING CAMERA (FSC)

×

×

—

—

ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE

—

—

×

—

SWIVEL ACTUATOR

—

—

×

—

BLIND SPOT MONITORING (BSM) CONTROL MODULE

—

—

—

×
