NO.1 BLOWN FUSES [SKYACTIV-G 2.0]

1

BLOWN FUSES

[TROUBLESHOOTING HINTS]

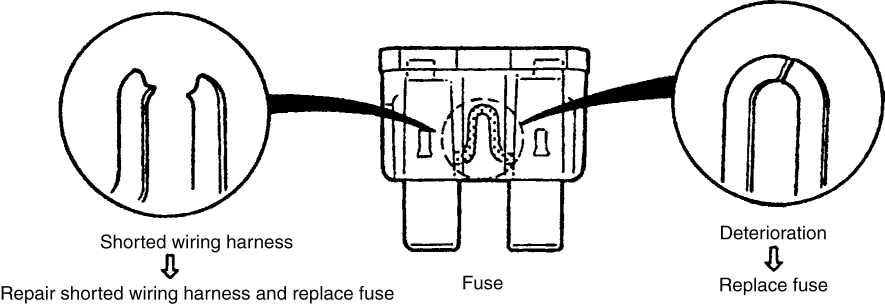

  • Inspect condition of fuse.

Damaged fuse

Related wiring harness

MAIN

  • FAN1 fuse

  • FUEL PUMP fuse

  • IG2 fuse

  • ENG+B2 fuse

  • ROOM fuse

  • ENG.MAIN fuse

  • INJECTOR fuse

  • EVVT fuse

  • IG1 relay

FAN1

  • Cooling fan relay

ENG IG1

  • Fuel pump relay

  • PCM

FUEL PUMP

  • Fuel pump relay

STR/ALT

  • Generator

  • Starter

IG2

  • ACC relay

  • Starter relay

ENG+B2

  • DLC-2

ROOM

  • ENG+B fuse

ENG+B

  • PCM

ENG.MAIN

  • Main relay

INJECTOR

  • Fuel injector relay

EVVT

  • Electric variable valve timing relay

ENGINE1

  • Electric variable valve timing relay

  • A/F sensor

  • HO2S

  • MAF sensor/IAT sensor No.1

  • Intake CMP sensor

  • CV solenoid valve*1

ENGINE2

  • Fuel injector relay

  • Purge solenoid valve

  • OCV

  • PCM

  • Engine oil solenoid valve

  • Exhaust CMP sensor

  • Ignition coil/ion sensor No.1

  • Ignition coil/ion sensor No.2

  • Ignition coil/ion sensor No.3

  • Ignition coil/ion sensor No.4

ENGINE3

  • Cooling fan relay
*1
U.S.A. and CANADA
