REAR OIL SEAL REPLACEMENT [SKYACTIV-G 2.0]

1. Remove the transmission. (See TRANSMISSION REMOVAL/INSTALLATION [M66M-D] (MT).) (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [SJ6A-EL] (AT).)
2. Remove the flywheel (MT) or drive plate (AT). (See CLUTCH UNIT REMOVAL/INSTALLATION (MT).) (See DRIVE PLATE REMOVAL/INSTALLATION [SJ6A-EL] (AT).)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

1

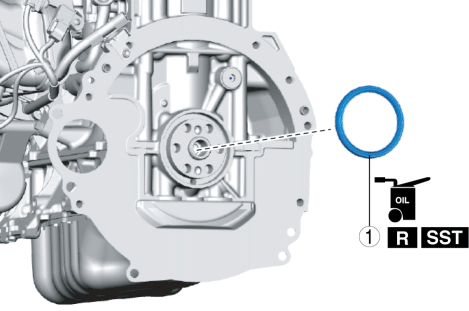

Rear oil seal

(See Rear Oil Seal Removal Note.)

(See Rear Oil Seal Installation Note.)

Rear Oil Seal Removal Note

1. Remove the rear oil seal lip using a utility knife.

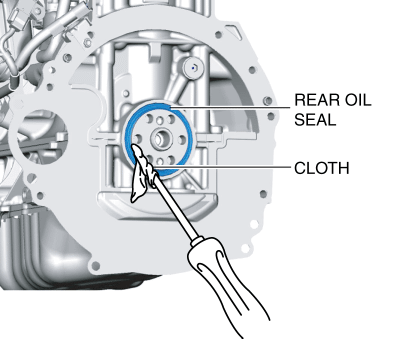

2. Using a screwdriver wrapped in a cloth, remove the rear oil seal being careful not to damage the sealing surface.

Rear Oil Seal Installation Note

1. Apply clean engine oil to the inner surface of a new rear oil seal.
2. Insert the rear oil seal into the cylinder block by hand.

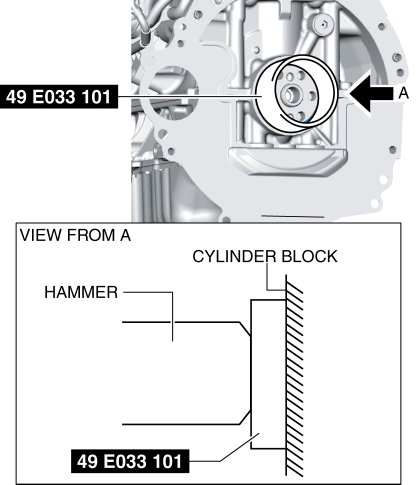

3. Tap the oil seal in evenly using the SST and a hammer.

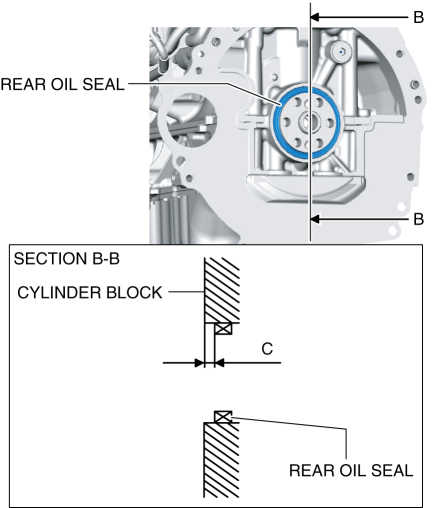

    Rear oil seal press on amount C

  • 0—0.5 mm {0—0.019 in} from cylinder block
