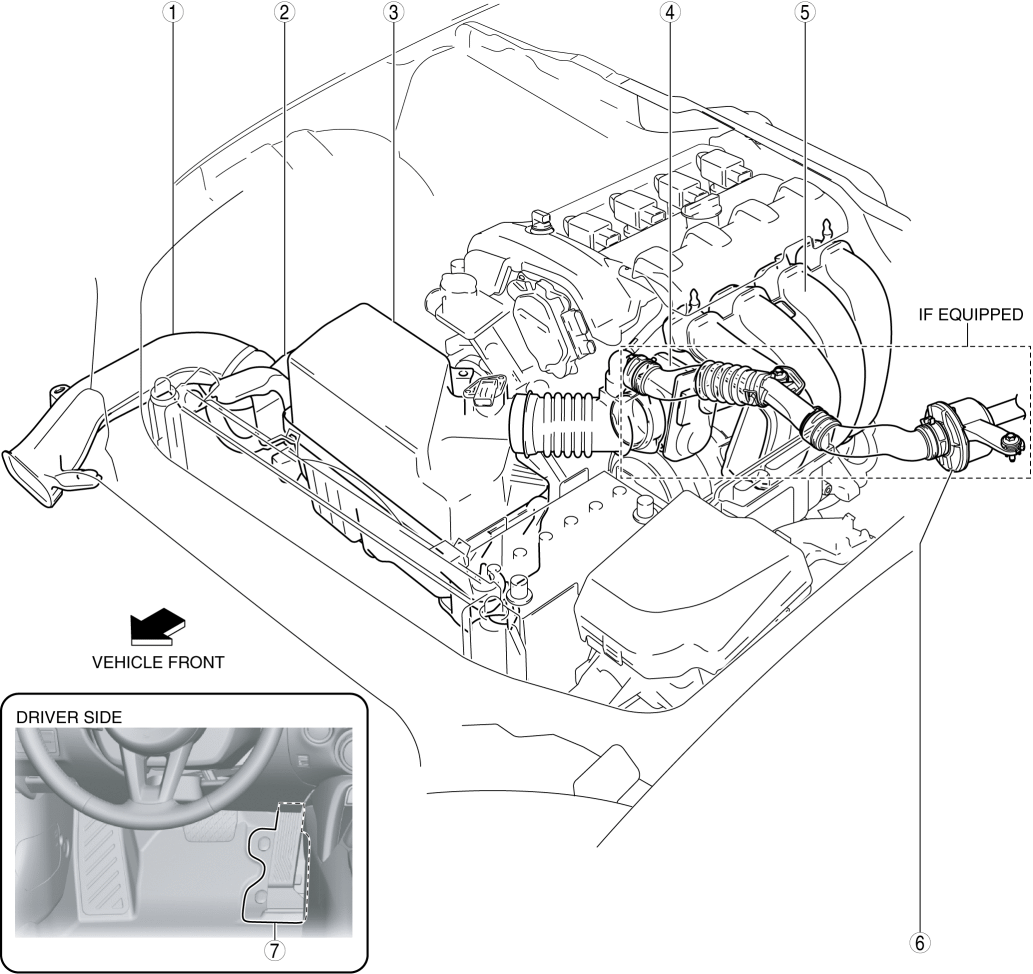

INTAKE-AIR SYSTEM LOCATION INDEX [SKYACTIV-G 2.0]

1

Fresh-air duct

(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2

Resonance chamber No.1

(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

3

Air cleaner

(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

(See AIR CLEANER ELEMENT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

(See AIR CLEANER ELEMENT INSPECTION [SKYACTIV-G 2.0].)

4

Throttle body

(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

(See THROTTLE BODY INSPECTION [SKYACTIV-G 2.0].)

5

Intake manifold

(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

(See INTAKE MANIFOLD VACUUM INSPECTION [SKYACTIV-G 2.0].)

6

Resonance chamber No.2 (if equipped)

(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

7

Accelerator pedal

(See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
