CHECK VALVE INSPECTION [SKYACTIV-G 2.0]

1. Remove the check valve. (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
2. Verify that there is no airflow when positive pressure is applied to port A.

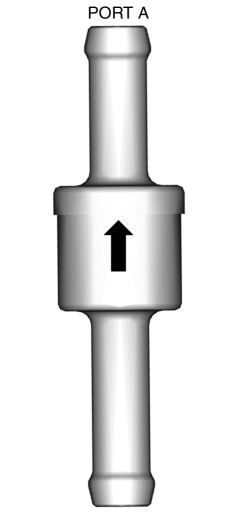

U.S.A. and CANADA specs.

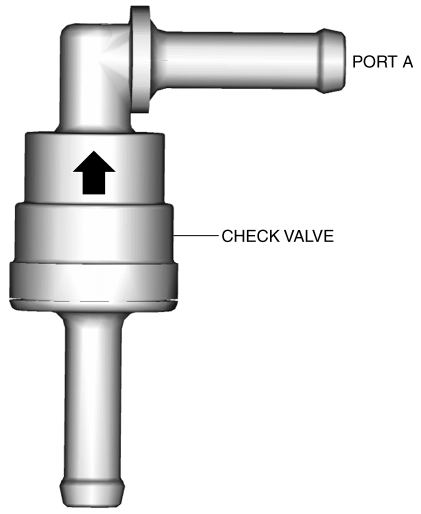

Except U.S.A. and CANADA specs.

3. Verify that there is no airflow when negative pressure is applied to port A.
