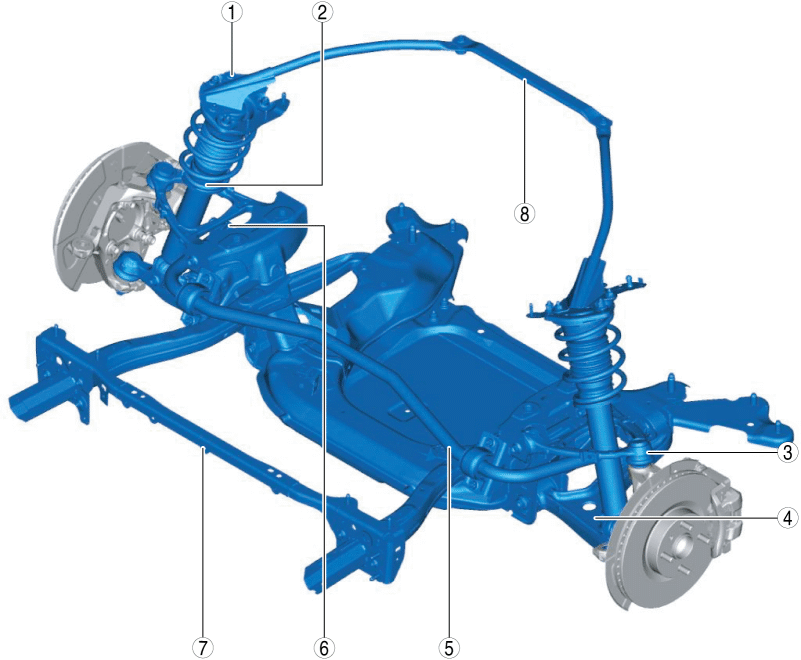

FRONT SUSPENSION LOCATION INDEX

1

Front shock absorber and coil spring

(See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION.)

(See FRONT SHOCK ABSORBER AND COIL SPRING DISASSEMBLY/ASSEMBLY.)

2

Front shock absorber

(See FRONT SHOCK ABSORBER INSPECTION.)

(See FRONT SHOCK ABSORBER DISPOSAL.)

3

Front upper arm

(See FRONT UPPER ARM REMOVAL/INSTALLATION.)

(See FRONT UPPER ARM INSPECTION.)

4

Front lower arm

(See FRONT LOWER ARM REMOVAL/INSTALLATION.)

(See FRONT LOWER ARM INSPECTION.)

5

Front stabilizer

(See FRONT STABILIZER REMOVAL/INSTALLATION.)

6

Front stabilizer control link

(See FRONT STABILIZER CONTROL LINK INSPECTION.)

7

Front crossmember

(See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

8

Front suspension tower bar (With front suspension tower bar)

(See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION.)
