LEADING LINK REMOVAL/INSTALLATION

CAUTION:

  • Performing the following procedures could cause an open circuit in the rear ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the rear ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

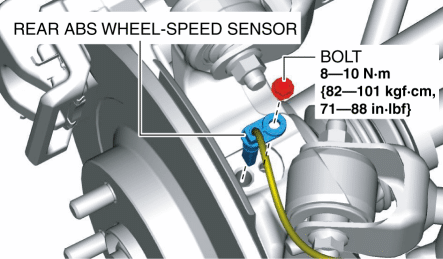

1. Remove the rear ABS wheel-speed sensor from the hub support.

2. Remove the rear ABS wheel-speed sensor wiring harness from the bracket and set it aside so that it does not interfere with the servicing.

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Inspect the rear wheel alignment and adjust if necessary. (See REAR WHEEL ALIGNMENT.)

1

Leading link inner bolt

2

Leading link outer bolt

3

Leading link

(See Leading Link Installation Note.)

Leading Link Installation Note

1. Install the leading link so that the leading link outer bolt can be inserted from the rear of the vehicle.
