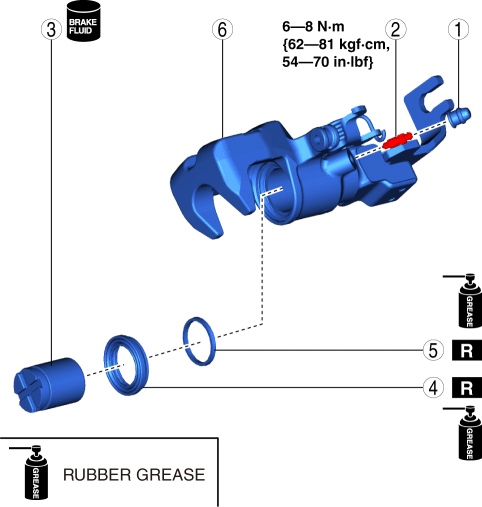

CALIPER (REAR) DISASSEMBLY/ASSEMBLY
1. Disassemble in the order indicated in the table.
| 1 |
Bleeder cap |
| 2 |
Bleeder screw |
| 3 |
Piston |
| 4 |
Dust seal |
| 5 |
Piston seal |
| 6 |
Caliper body |
2. Assemble in the reverse order of removal.< Previous Next >
