BRAKE PEDAL INSPECTION

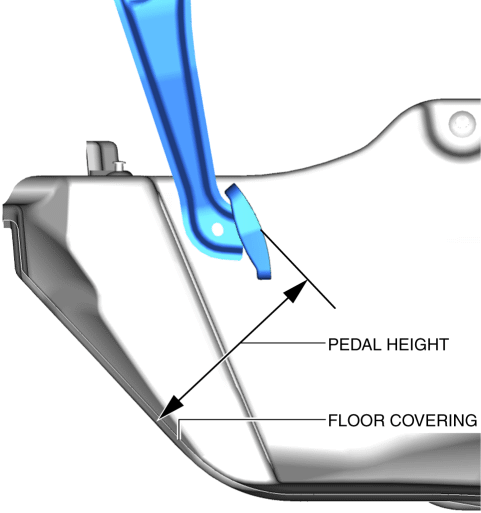

Pedal Height Inspection

1. Measure the distance from the center of the upper surface of the pedal pad to the floor covering and verify that it is as specified.

    Brake pedal height (reference value)

  • 145.4 mm {5.724 in}

  • If not within the specification, inspect the following items and repair or replace the applicable part if there is any malfunction.

    • Power brake unit installation condition

    • Deformation of or damage to the power brake unit fork

    • Brake pedal installation condition

    • Clevis pin wear

  • If there is no malfunction in the above items, replace the brake pedal. (See BRAKE PEDAL REMOVAL/INSTALLATION.)

Pedal Play Inspection

1. Pump the pedal several times to release the vacuum in the power brake unit.
2. Gently depress the pedal by hand and measure the pedal play.
    Brake pedal play

  • 4.7 mm {0.19 in} or less

Pedal-to-floor Clearance Inspection

1. Start the engine and depress the brake pedal with a force of 147 N {15.0 kgf, 33.0 lbf}.
2. Measure the distance from the center of the upper surface of the pedal pad to the floor covering and verify that it is as specified.

    Brake pedal-to-floor clearance (Brake pedal when depressed at 147 N {15.0 kgf, 33.0 lbf})

  • 92.3 mm {3.63 in} or more
