FLYWHEEL INSPECTION

1. Remove the flywheel. (See CLUTCH UNIT REMOVAL/INSTALLATION.)
2. Perform the following procedure to inspect the flywheel.
a. Inspect the surface that contacts the clutch disc for scratches, nicks, and discoloration.

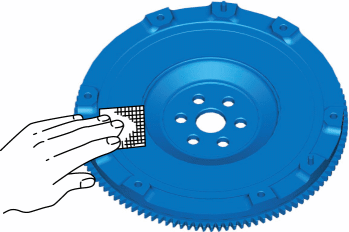

  • Correct slight scratches and discoloration using sandpaper.

b. Inspect the ring gear teeth for damage and wear.

  • If there is any malfunction, replace the flywheel.

c. Inspect the runout of the surface that contacts the clutch disc.

i. Install the flywheel. (See CLUTCH UNIT REMOVAL/INSTALLATION.)

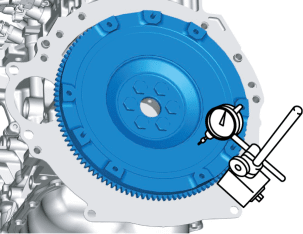

ii. Measure the runout of the surface that contacts the clutch disc using a dial gauge.
    Flywheel maximum runout

  • 0.1 mm {0.004 in}
