CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Disconnect the clutch pedal position switch connector.

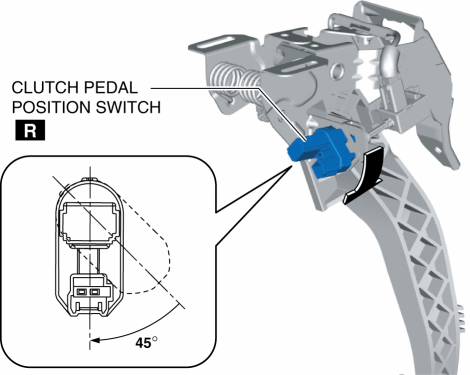

3. Rotate the clutch pedal position switch 45° counterclockwise.

4. Remove the clutch pedal position switch.

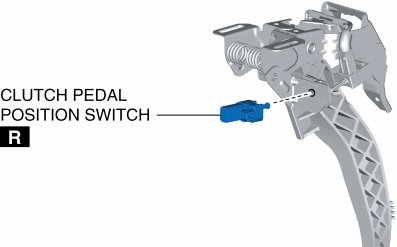

5. Insert a new clutch pedal position switch into the clutch pedal hole until the switch stops.

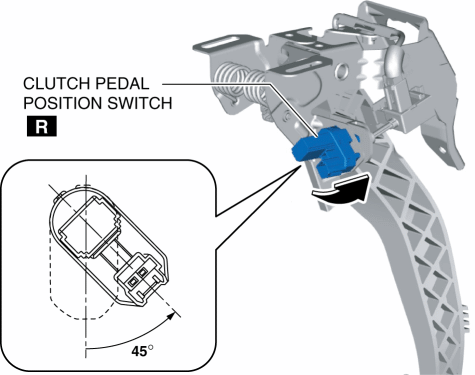

6. Rotate the clutch pedal position switch 45° clockwise.

7. Verify that the clutch pedal position switch is locked securely.
8. Connect the clutch pedal position switch connector.
9. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
