OIL SEAL (OIL PUMP) REPLACEMENT [SJ6A-EL]

1. Remove the transmission. (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [SJ6A-EL].)
2. Remove the torque converter. (See TORQUE CONVERTER REMOVAL/INSTALLATION [SJ6A-EL].)

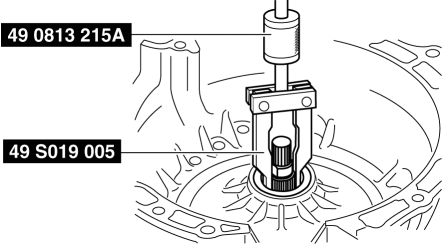

3. Remove the oil seal from the oil pump body using the SSTs.

CAUTION:

  • Do not to damage the bushing on the oil pump body.

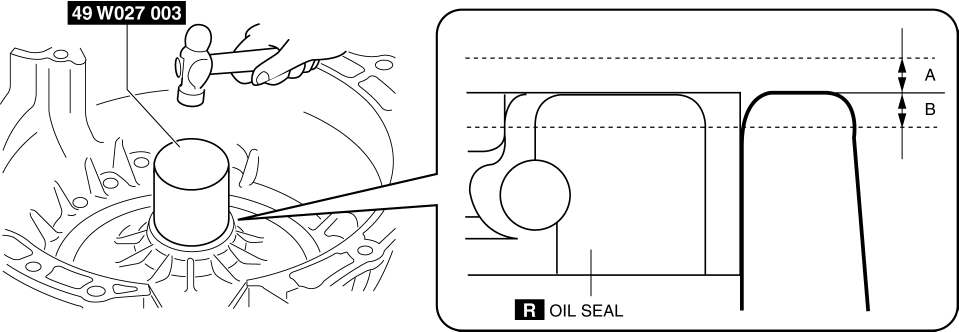

4. Using the SST and a hammer, install the new oil seal to the oil pump body.

  • A: 0.2 mm {0.008 in}

  • B: 0.2 mm {0.008 in}

5. Coat the lip of the oil seal with grease.
6. Install the torque converter. (See TORQUE CONVERTER REMOVAL/INSTALLATION [SJ6A-EL].)
7. Install the transmission. (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [SJ6A-EL].)
8. Perform the mechanical system test. (See MECHANICAL SYSTEM TEST [SJ6A-EL].)
