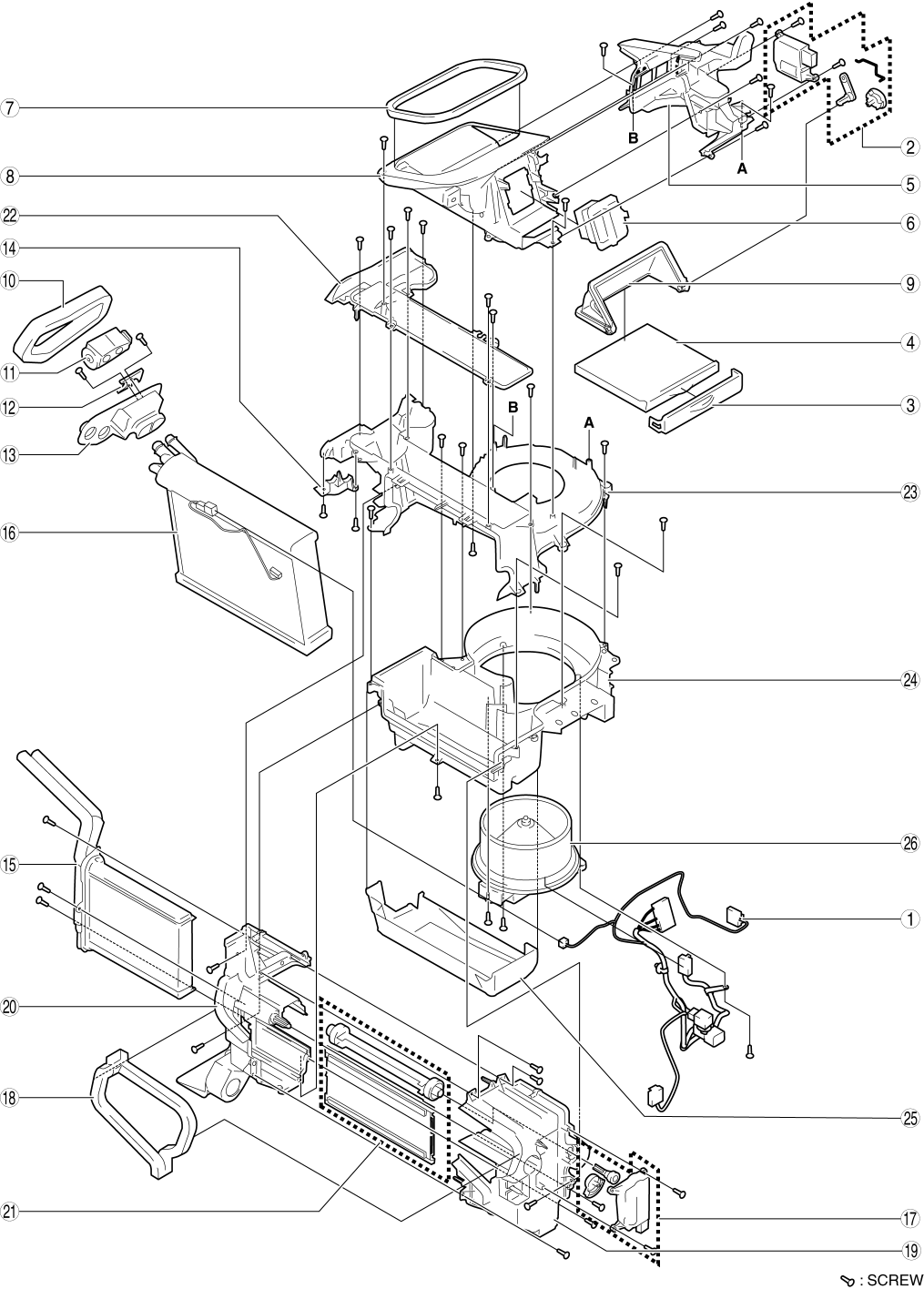

A/C UNIT DISASSEMBLY/ASSEMBLY

CAUTION:

  • If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.

1. Disassemble in the order indicated in the table.

×: Applicable

—: Not applicable

Step

Part name

Disassembly/assembly of main parts

Heater core

Evaporator

1

Harness

—

×

2

Air intake actuator

—

×

3

Dust filter cover

—

×

4

Dust filter

—

×

5

A/C case A

—

×

6

Blower fan controller

—

×

7

Polyurethane foam B

—

×

8

Air intake box

—

×

9

Air intake door

—

×

10

Polyurethane foam C

×

×

11

Expansion valve

×

×

12

Plate

×

×

13

Seal

×

×

14

Cover

×

×

15

Heater core

×

—

16

Evaporator

—

×

17

Air mix actuator

—

—

18

Polyurethane foam D

—

—

19

A/C case D

—

—

20

A/C case F

—

—

21

Air mix damper

—

—

22

A/C case E

—

×

23

A/C case B

—

—

24

A/C case C

—

—

25

Polyurethane foam A

—

—

26

Blower motor

—

—
2. Assemble in the reverse order of disassembly.
3. When replacing the evaporator, add compressor oil to the refrigerant cycle.
    Supplemental compressor oil amount (approx. quantity)

  • 40 ml {40 cc, 1.4 US fl oz}
