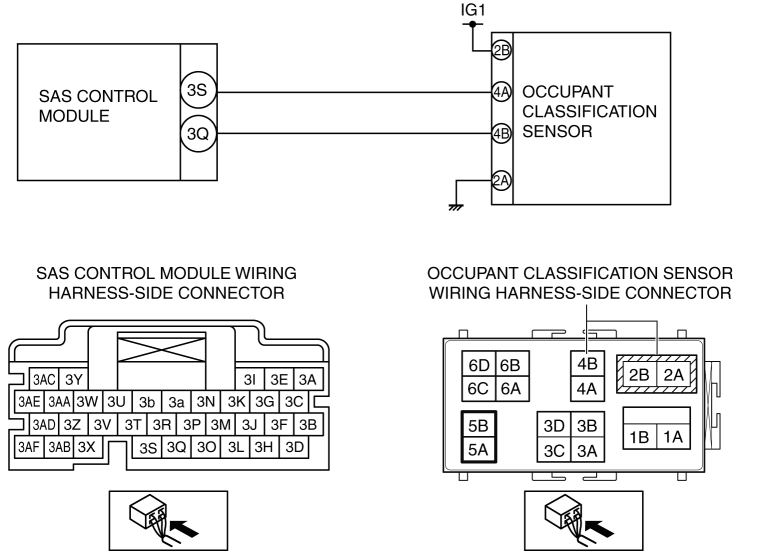

System malfunction location

• B00C0:93:Occupant classification sensor communication error (occupant classification sennsor mat structural malfunction)

• B00C1:93:Occupant classification sensor communication error (occupant classification sennsor shield mat structural malfunction)

Detection condition

WARNING:

• Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.

• Malfunction signal receibed occupant sensor

Fail-safe

—

Possible cause

• Occupant classification sensor malfunction

• SAS control module malfunction

Step

Inspection

Action

1

• Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)].)

• Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC INSPECTION [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)].)

• Is the same DTC present?

Yes

• Replace the occupant classification sensor.

  (See OCCUPANT CLASSIFICATION SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

• Perform the DTC inspection again. If the same DTC is displayed, go to the next step.

No

DTC troubleshooting completed.

2

• Switch the ignition to off.

• Disconnect the negative battery cable and wait for 1min or more.

• Reconnect the disconnected connectors.

• Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

• Switch the ignition ON (engine off or on).

• Clear the DTC for the SAS control module using the M-MDS. (See CLEARING DTC [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)].)

• Perform the DTC inspection for the SAS control module using the M-MDS. (See DTC INSPECTION [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)].)

• Is the same DTC present?

Yes

Replace the SAS control module. (See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

No

DTC troubleshooting completed.
