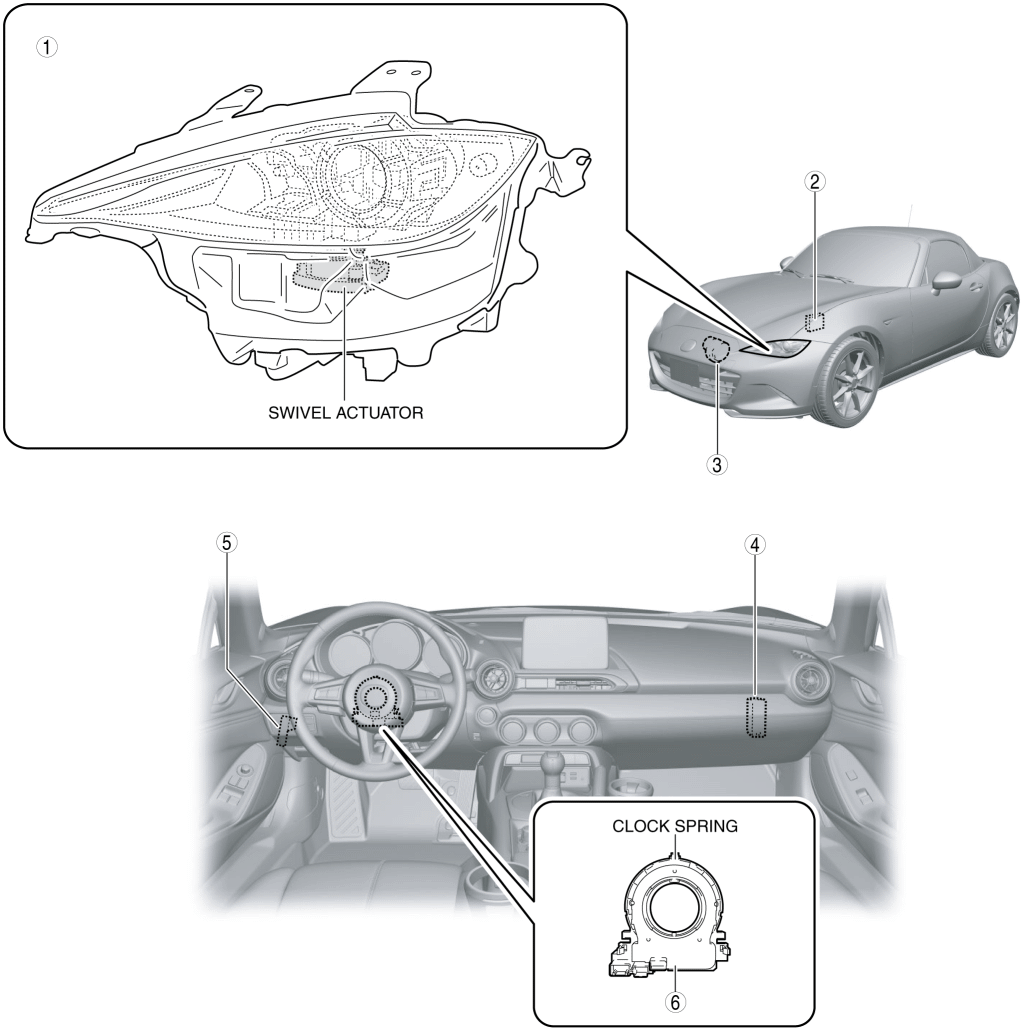

ADAPTIVE FRONT LIGHTING SYSTEM (AFS) LOCATION INDEX

1

Front combination light

(See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY.)

2

PCM

(See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

(See PCM INSPECTION [SKYACTIV-G 2.0].)

(See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-G 2.0].)

(See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-G 2.0].)

3

EPS control module

(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(See ELECTRIC POWER STEERING (EPS) CONTROL MODULE REMOVAL/INSTALLATION.)

(See ELECTRIC POWER STEERING (EPS) SHORT CORD REMOVAL/INSTALLATION.)

4

AFS control module

(See ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE REMOVAL/INSTALLATION.)

(See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)

5

BCM

(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)

(See BODY CONTROL MODULE (BCM) INSPECTION.)

(See BODY CONTROL MODULE (BCM) CONFIGURATION (USING READ/WRITE FUNCTION).)

6

Steering angle sensor

(See STEERING ANGLE SENSOR REMOVAL/INSTALLATION.)

(See STEERING ANGLE SENSOR INSPECTION.)
