DTC C2003:13 [START STOP UNIT]

Description	Open circuit in steering switch
Detection condition	Start stop unit detects an open circuit in the steering switch circuit for 5 s or more with the ignition switched ON (engine off or on).
Fail-safe	Not applicable

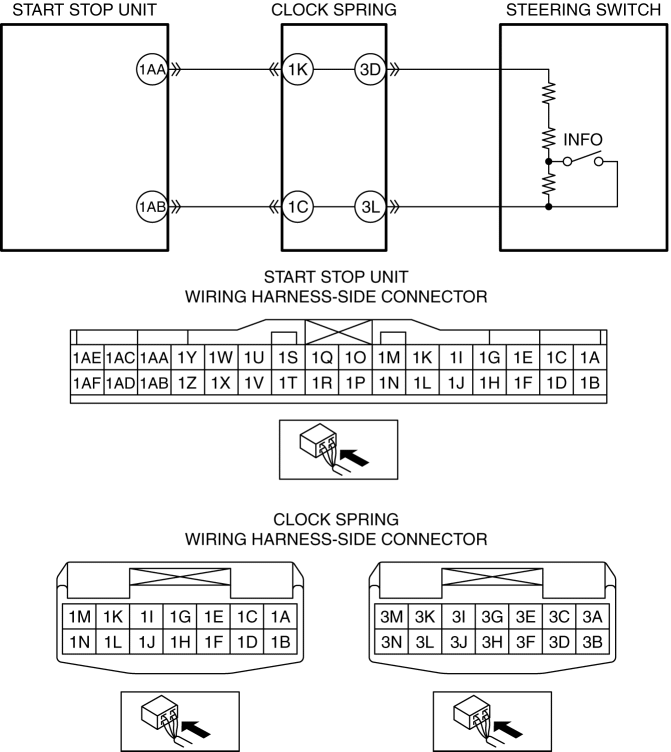

Possible cause	Clock spring connector or terminal malfunction Clock spring malfunction Start stop unit connector or terminal malfunction Open circuit in wiring harness between the following terminals: Start stop unit terminal 1AA—Clock spring terminal 1K Start stop unit terminal 1AB—Clock spring terminal 1C Steering switch malfunction Start stop unit malfunction

Diagnostic Procedure

Step	Inspection		Action
1	INSPECT CLOCK SPRING CONNECTOR CONDITION Switch the ignition off. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) Disconnect the clock spring connector. Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. Is the connector normal?	Yes	Go to the next step.
		No	Repair or replace the connector, then go to Step 6.
2	INSPECT CLOCK SPRING Inspect the clock spring. (See CLOCK SPRING INSPECTION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See CLOCK SPRING INSPECTION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) Is the clock spring normal?	Yes	Go to the next step.
		No	Replace the clock spring, then go to Step 6. (See CLOCK SPRING REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
3	INSPECT START STOP UNIT CONNECTOR CONDITION Disconnect the start stop unit connector. Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. Is the connector normal?	Yes	Go to the next step.
		No	Repair or replace the connector, then go to Step 6.
4	INSPECT STEERING SWITCH CIRCUIT FOR OPEN CIRCUIT Verify that the clock spring and start stop unit connectors are disconnected. Inspect for continuity between the following terminals (wiring harness-side): Start stop unit terminal 1AA—Clock spring terminal 1K Start stop unit terminal 1AB—Clock spring terminal 1C Is there continuity?	Yes	Go to the next step.
		No	Refer to the wiring diagram and verify whether or not there is a common connector between the following terminals: Start stop unit terminal 1AA—Clock spring terminal 1K Start stop unit terminal 1AB—Clock spring terminal 1C If there is a common connector: Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. Repair or replace the malfunctioning part. If there is no common connector: Repair or replace the wiring harness which has an open circuit. Go to Step 6.
5	INSPECT STEERING SWITCH Inspect the steering switch. (See STEERING SWITCH INSPECTION.) Is the steering switch normal?	Yes	Go to the next step.
		No	Replace the steering switch, then go to the next step. (See STEERING SWITCH REMOVAL/INSTALLATION.)
6	VERIFY THAT REPAIRS HAVE BEEN COMPLETED Always reconnect all disconnected connectors. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.) Clear the DTC for the start stop unit using the M-MDS. (See CLEARING DTC [START STOP UNIT].) Switch the ignition ON (engine off or on) and wait for 5 s or more. Retrieve the start stop unit DTCs using the M-MDS. (See DTC INSPECTION [START STOP UNIT].) Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. If the malfunction recurs, replace the start stop unit. (See START STOP UNIT REMOVAL/INSTALLATION.) Go to the next step.
		No	Go to the next step.
7	VERIFY IF OTHER DTCs DISPLAYED Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [START STOP UNIT].)
		No	DTC troubleshooting completed.
