DOOR LOCK SWITCH INSPECTION

LH

Door Lock Switch Inspection
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION)
3. Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION)

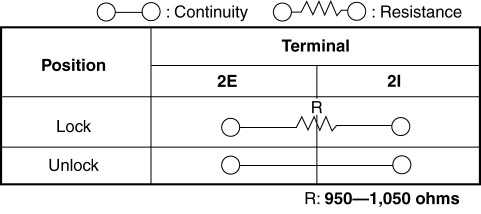

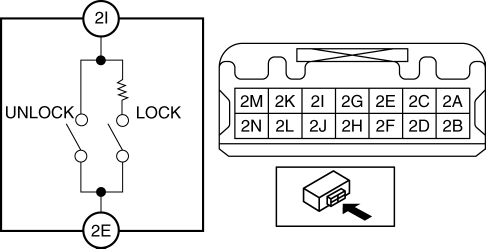

4. Verify that the continuity is as indicated in the table.

  • If the continuity is not as indicated in the table, replace the power window main switch.

LED Illumination Inspection

  • The door lock switch is built into the power window main switch.

  • If the door lock switch inspection is performed, perform the inspection referring to the [POWER WINDOW MAIN SWITCH INSPECTION]. (See POWER WINDOW MAIN SWITCH INSPECTION.)

RH

Door Lock Switch Inspection
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION)
3. Remove the door lock switch. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION.)

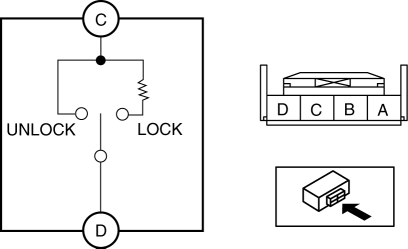

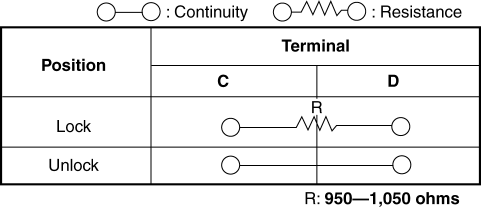

4. Verify that the continuity is as indicated in the table.

  • If the continuity is not as indicated in the table, replace the door lock switch.

LED Illumination Inspection
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION)
3. Remove the door lock switch. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION.)

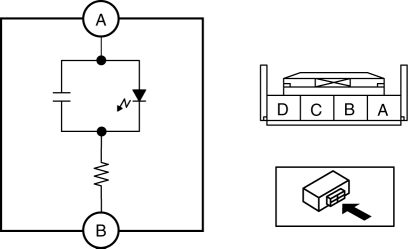

4. Apply battery voltage to door lock switch terminal A, and connect terminal B to ground.

5. Verify that the LED turns on.

  • If the LED does not turn on, replace the door lock switch.
